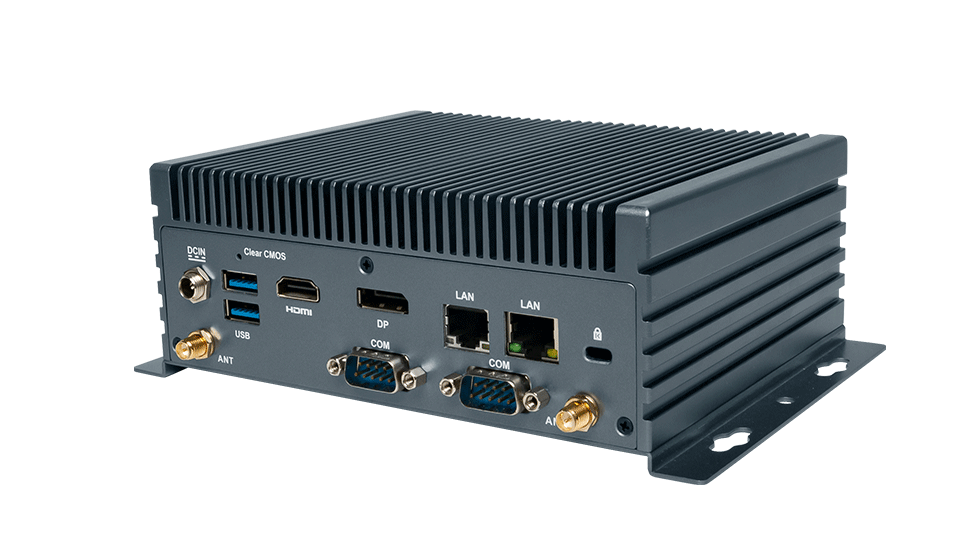

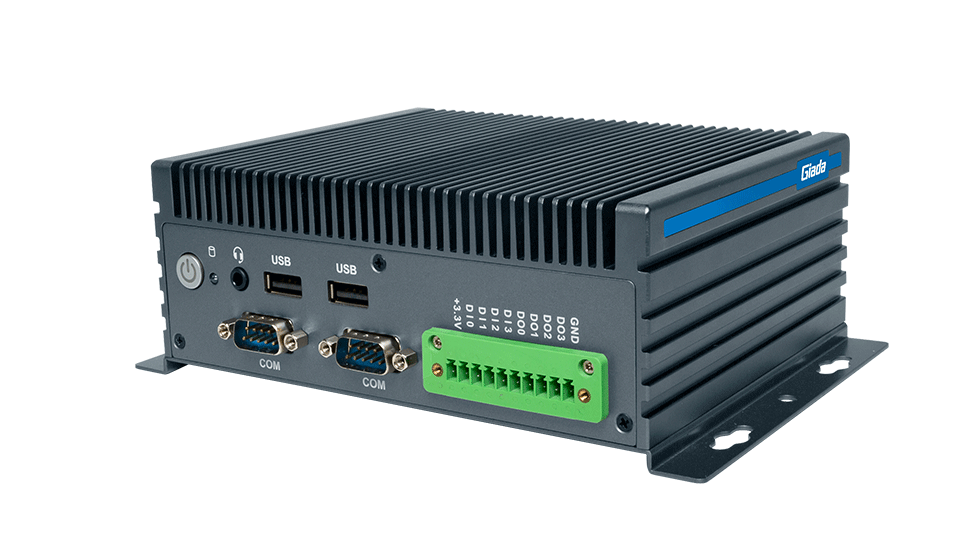

AF208 Intel Alder Lake-N Industrial PC with Dual 4K Display & Wide Temperature

The Giada AF208 outdoor digital signage player is powered by Intel® Alder Lake-N processors and supporting up to 16GB DDR5-4800MHz memory. This power-efficient processing unit ensures optimal performance while keeping energy consumption low, a critical factor for outdoor digital signage that operates around the clock.

Wide-range Temperature & Voltage

The Giada AF208 outdoor signage player can operate within a wide temperature range of -20℃ to 60℃, making it suitable for use in various rugged environments. Also with wide voltage (12 V~24 V) range, the signage player is suitable for a variety of outdoor applications, including bus stop displays, drive-through menus, digital billboards, and wayfinding systems.

4K Media Playback with Dual Display Outputs

The signage player delivers smooth 4K media playback with dual display outputs. Equipped with Intel® UHD Graphics, it provides stunning, high-quality visuals through HDMI 2.0 and DP1.2 outputs, ensuring sharp, vibrant content that engages audiences in any outdoor environment.

Fanless Design

The Giada AF208 boasts a fanless design, making it a perfect fit for outdoor environments where space is often limited and airflow may be constrained. This design ensures that the player runs quietly and efficiently, with minimal maintenance required, while avoiding dust and debris build-up that can occur in traditional fan-based systems.

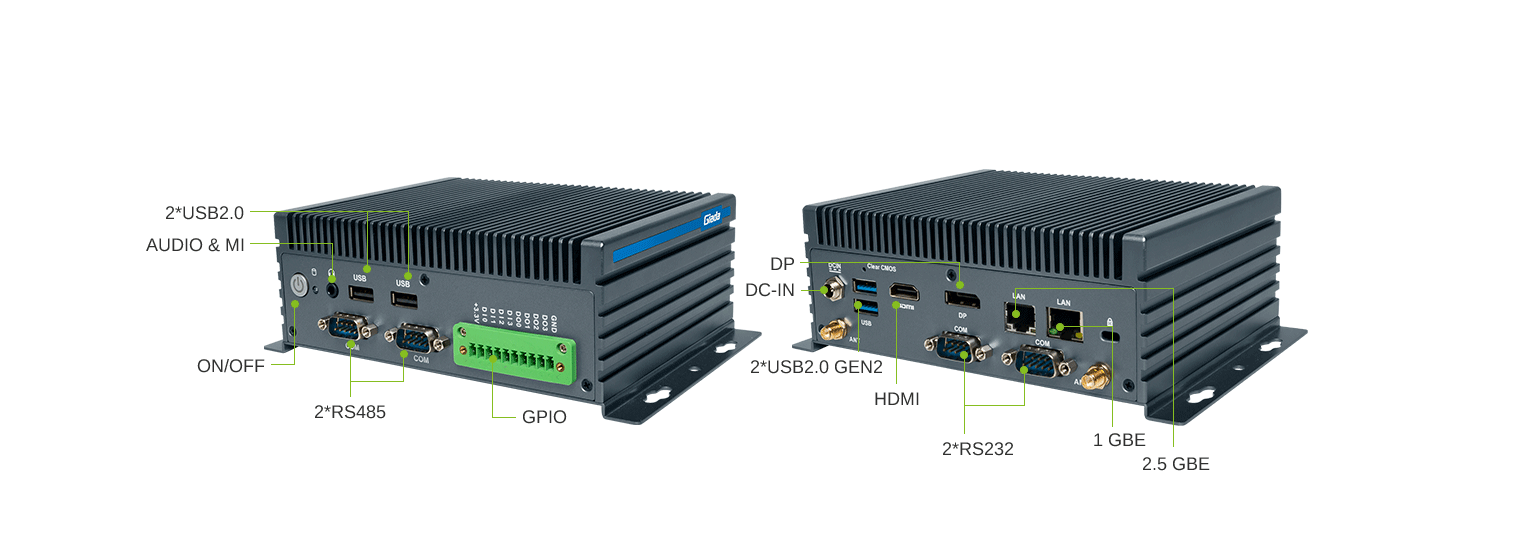

I/O port introduction

Processor	CPU	Intel^® Processor N97 Intel^® Atom X7211E Processor
	Chipset	SoC
	Processing Units	4 Cores/2 Cores
	TDP	12 W/6 W
Memory	Size	8 GB (Optional: 16 GB)
Memory	Type	Onboard LPDDR5-4800 MHz, Single-channel
Storage	Socket 1	1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
Display	GPU	Intel^® UHD Graphics
	Graphic Engine	DirectX 12.1, OpenGL 4.6, OpenCL 3.0
	Display Interface	1 x DP1.2 (Max.4096 x 2160 @60Hz) 1 x HDMI2.0 (Max.4096 x 2160 @60Hz)
Network	Network Controller	1 x Intel l i226-V Gigabit Ethernet, 1 x Intel i210-AT Gigabit Ethernet
	Ethernet Interface	1 x 2.5 GbE RJ45, 1 x 1 GbE RJ45
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6/6E
I/O interface	USB	2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
	Serial Port	2 x RS232, 2 x RS485
	Audio	1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
	Button	1 x Power on, 1 x CLR-CMOS
	GPIO	10pin GPIO (4 x GPI, 4 x GPO)
	Antenna	2 x Connector for Wi-Fi/BT
System	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Power Requirement	Lockable DC-IN, 12~24 V, 45 W
	Dimensions	162 mm x 130 mm x 60 mm (6.37” x 5.12” x 2.36”)
	Construction	Metal, Grey
	Operating System	Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating Temperature	-20°C ~60°C (-4°F~140°F) @0.7m/s Air Flow
	Humidity	95% @ 45°C (non-condensing)
	Certifications	CE, FCC Class B, UKCA
