BQ612

9 x USB Desktop PC
Intel 12th/13th Gen. CPU
Dual Lan
Intel® Alder Lake-S Processors <br/>High Computing Performance
Intel® Alder Lake-S Processors
High Computing Performance
It adopts optional H610/B660 chipsets and supports Socket 12th/13th generation processors (TDP≤65W), ranging from Celeron®, Pentium® to Core™ i3/i5/i7.
Dual Display Outputs<br/>  Supporting 8K Video Playback
Dual Display Outputs
Supporting 8K Video Playback
With Intel® UHD Graphics 770 or 750 or 730, the PC supports three display outputs. The two display outputs are an HDMI 2.0a ([email protected]), optional a DisplayPort 1.4 (7680x4320 @60Hz), or a VGA port (2048 x [email protected]). It can support max. 8K video display.
Rich I/O Ports<br/> Supporting Intrusion Detection
Rich I/O Ports
Supporting Intrusion Detection
The PC measures only 1.24L, yet supports rich I/O ports, including 8 x USB Type-A and dual LAN ports. With a micro switch, it can detect removal of the computer cover. Once the chassis was opened, the BIOS will record (won't alarm) and warn you next time when the system starts up.
CPU CPU
Intel® LGA1700 Socket 12th/13th Gen. processors

Frequency

by CPU

Chipset

H610/B660

Processing Units

by CPU

TDP

≤ 65 W
Memory Size Up to 64 GB
Type 2 x SO-DIMM DDR4-3200 MHz
Storage Socket 1
1 x M-Key M.2 (2242/2280) for PCIe SSD
Socket 2
1 x 2.5” SATAIII (7+15 pin)
Display

GPU

Intel® UHD Graphics 730/770

Graphic Engine

DirectX 12.0, OpenGL 4.5, OpenCL 3.0,

Display Interface

1 x HDMI (Max. 4096 x 2160 @60 Hz)
1 x VGA (Max. 2048 x 1536 @60 Hz)
DP (Max. 7680 x 4320 @60 Hz) colay with VGA
Network
Network Controller
2 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface
2 x RJ45
Wi-Fi/BT

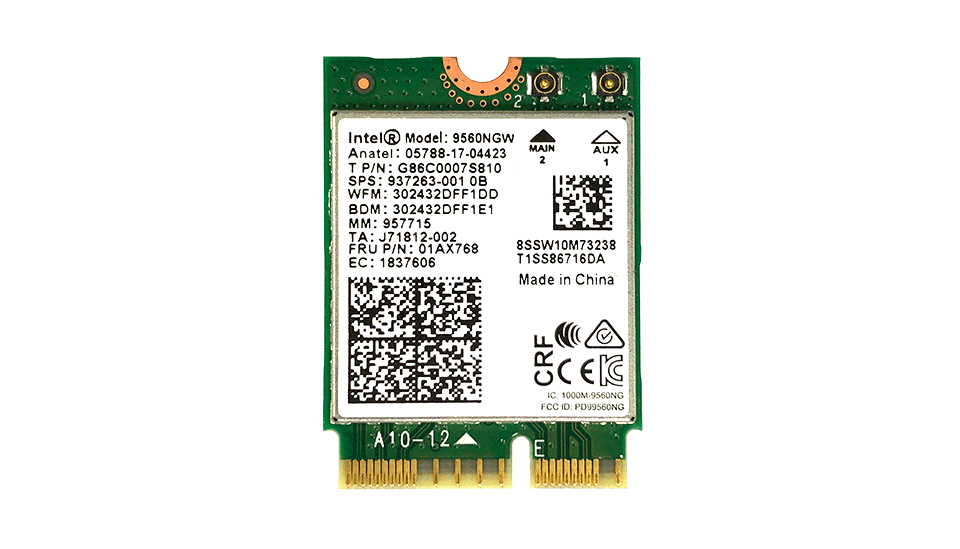

1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
Mobile Network
1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
I/O interface

USB

1 x USB Type-C3.2 Gen2 (B660)
2 x USB3.2 Gen2, 6 x USB2.0 (B660)
1 x USB Type-C3.2 Gen1 (H610)
2 x USB3.2 Gen1, 6 x USB2.0 (H610)

Serial Port

2 x RS232

Audio

1 x MIC-IN, 1 x LINE-OUT

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Connector for Wi-Fi/BT

System
TPM
Optional: TPM2.0
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Remo on
NA
Power Requirement
DC-IN, 19 V/4.74 A
Dimensions
200 mm x 185 mm x 35.5 mm (7.87” x 7.28” x 1.40”)
Construction
Metal, Black
Operating System
Windows 10-1909 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B
