| Processor | CPU | Intel Processor N150/N100/N97 |
| Chipset | SoC | |
| Processor Units | 4 Cores | |
| Total Threads | 4 | |
| TDP | 6 W /12 W | |

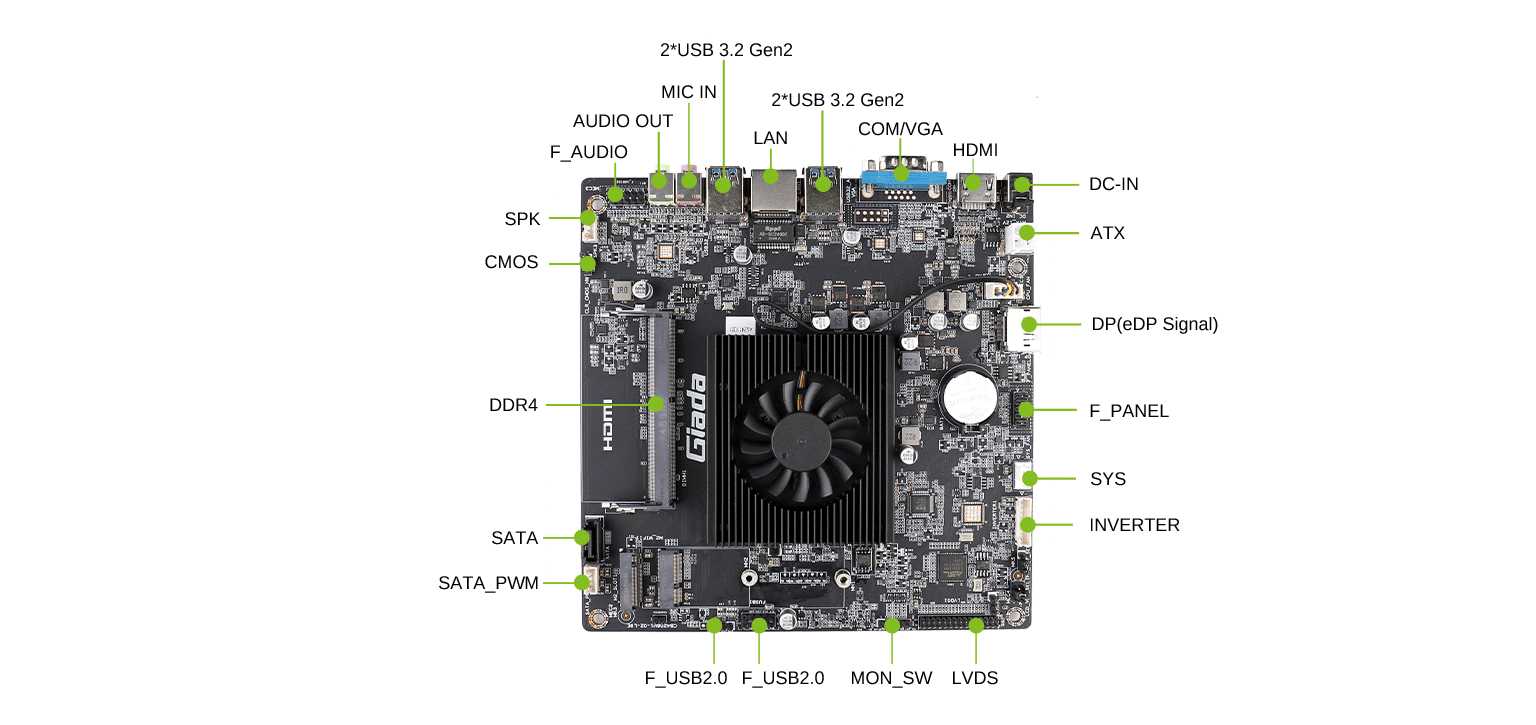

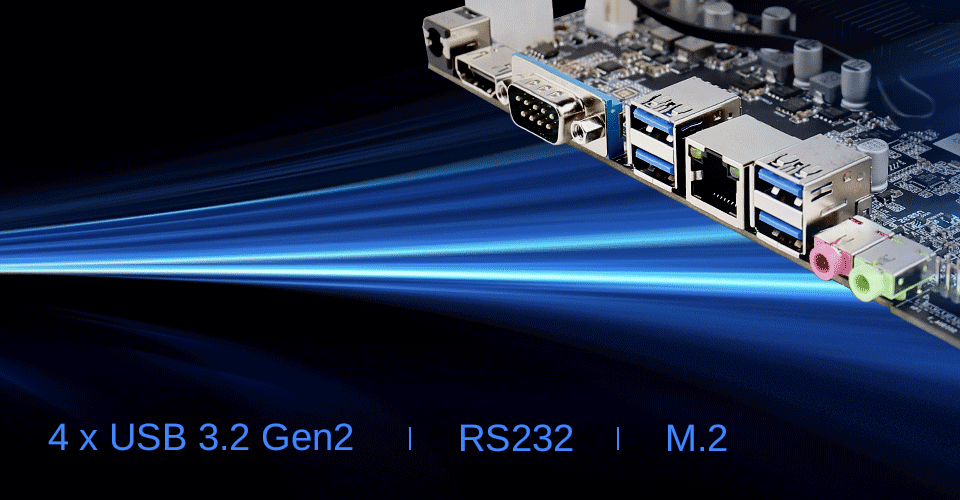

| Rear I/O | USB | 4 x USB3.2 Gen2 |
| Display Interface |
1 x VGA (Max. 2048 x 1536 @60Hz) colay COM
1 x HDMI2.0 (Max. 4096 x 2160 @60Hz)
eDP: no audio, no hot-plug, supports gravity sensor |
|
| Audio | 1 x Audio out, 1 x MIC in | |
| Ethernet Interface | 1 x 1 GbE RJ45 | |
| Internal I/O | USB |
1 x 9pin 2.45mm header（2 x USB2.0）
1 x 4pin 2.45mm header（1 x USB2.0）
|
| COM |
|
|
| Power | 1, ATX（2 x 2pin 12V only) | |
| LVDS |
1 x LVDS 30pin, 1 x INVENTER 8pin,
1 x BL_PWM 3pin1 x LCD_VDD_SEL 6pin,
1 x INV_VOT_SEL 4pin, 1 x LVDS_CTRL 3pin,
1 x BKL-CON 4pin
|
|
| Audio port | 1 x Speaker 4pin, 1 x F_Audio 9pin | |
| F_PANEL | 1, (2 x 5pin) | |
| SATA | 1 x SATA for HDD/SSD, 1 x HDD_PWR 4pin | |
| Physical control switch | 1 x MON_SW 5pin (Volume & Brightness) | |
| Clear_CMOS | 1, (1 x 3pin) | |
| Fan |
1 x SYS_FAN 4pin
1 x CPU_FAN 4pin
|
|
| Network | Network Controller | 1 x RTL8111H Gigabit Ethernet |
| Wi-Fi/BT | 1 x E-Key M.2 (2230) for Wi-Fi/BT | |
| Mobile Network | NA | |
| System | GPU | Intel UHD Graphics |
| System Memory |
Up to 16 GB, 1 x SO-DIMM DDR4-3200MHz
|
|
| Storage | 1 x M-Key M.2 (2280) PCIe3.0 X1 & SATA for SSD | |
| Wake On LAN | Support (Enable by default) | |
| Gyro Sensor | Optional | |
| Fan RPM control | Yes | |
| Power Requirement |
1 x 12V DC IN, 2.5/5.5mm DC Jack power input
1 x ATX 4-pin power connector
|
|
| Dimensions | 170 mm x 170 mm (6.69” x 6.69”) | |
| Operating system | Windows 11 (64bit) /Linux Ubuntu (64bit) | |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) @0.7m/s Air Flow | |
| Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) | |
| Humidity | 5% ~ 95% @ 45°C (non-condensing) |
