Intel Raptor Lake-refresh Processors<br/> High Computing Performance

Intel Raptor Lake-refresh Processors
High Computing Performance

Giada D614, armed with Intel Raptor Lake-refresh Core 3-100U/5-120U processors, delivering robust, real-world performance, Intel Core processors give users the power they can rely on for multitasking, and reliable connectivity, working in harmony to optimize power consumption without compromising on processing power.

Four Display Outputs <br/>Supporting 4K Video Playback

Four Display Outputs
Supporting 4K Video Playback

D614 delivers four independent HDMI displays with up to 4K @60Hz resolution in each display and supports 1x 4K@60 or 4x FHD@60 crisp content video playback.The signage player is suitable for a broad range of applications including restaurant menu boards and electronic displays in banks, airports and shopping malls to convey dynamic information and promotions to targeted audience.

Support 5G Cellular Network

5G provides game-changing benefits like speeds up to 10 times faster than 4G LTE speeds, a safer alternative to public Wi-Fi, low latency and massive capacity. The Quectel-RM50XQ 5G module was certified to be compatible with D614.

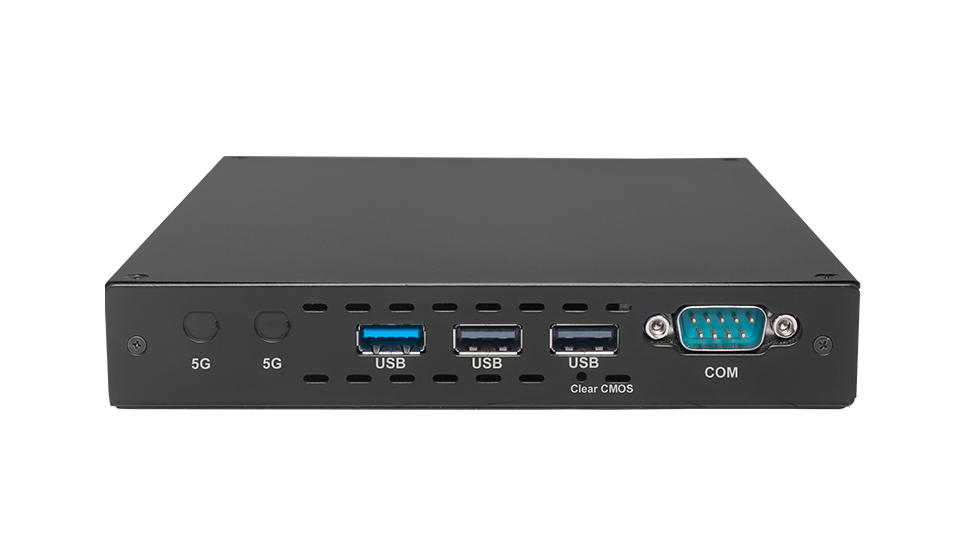

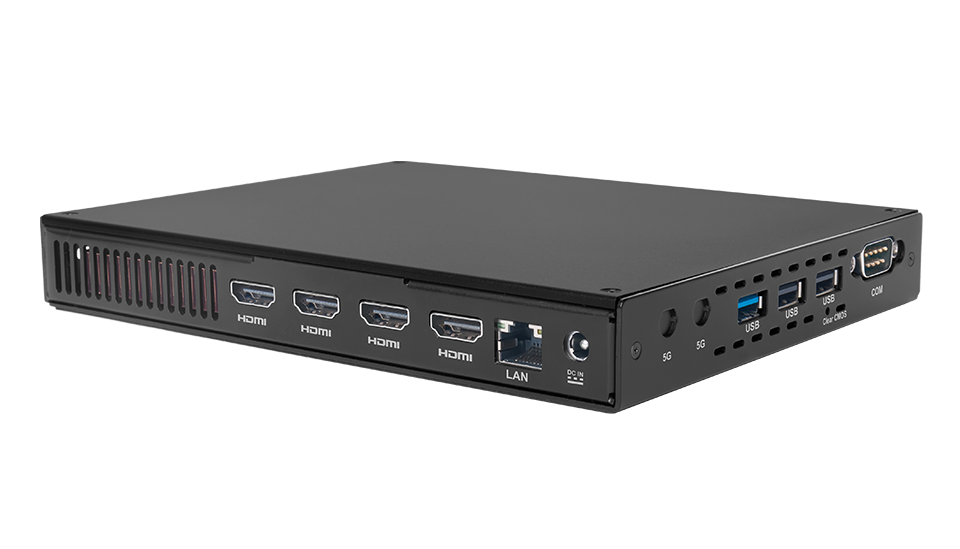

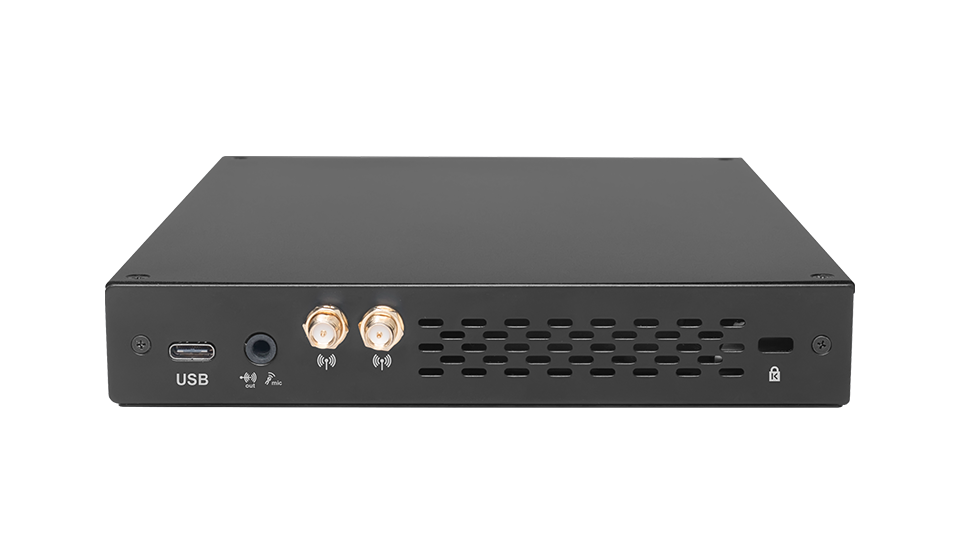

I/O port introduction

CPU	CPU	Intel® Core™ 3 processor 100U Intel® Core™ 5 processor 120U
	Chipset	SoC
	Processing Units	6 Cores /10 Cores
	Configurable TDP-up	15 W /15 W
Memory	Size	Up to 96 GB
Memory	Type	2 x SO-DIMM DDR4-3200 MHz
Storage	Socket 1	1 x M-Key M.2 (2242/2280) for PCIe SSD
Display	GPU	Intel® Graphics
	Graphic Engine	DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
	Display Interface	4 x HDMI (Max.4096 x 2304 @60 Hz) Optional: 1 x DP (Max.7680 x 4320 @60Hz), 2 x HDMI (Max.4096 x 2304 @60 Hz)
Network	Network Controller	1 x Intel® Ethernet Controller i219-LM
	Ethernet Interface	1 x 1 GbE RJ45
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
	Mobile Network	1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot
I/O interface	USB	1 x USB Type-C3.2 Gen2, 1 x USB3.2 Gen2, 2 x USB2.0
	Serial Port	1 x RS232
	Audio	1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
	Button	1 x Power on, 1 x CLR-CMOS
	Antenna	2 x Connector for Wi-Fi/BT 2 x Connector for 5G (Reserved)
System	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Power Requirement	DC-IN, 19 V/4.74 A
	Dimensions	189.6mm x 148.3mm x 26mm (7.46” x 5.83” x 1.02”)
	Construction	Metal, Black
	Operating System	Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating Temperature	0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
	Humidity	95% @ 40°C (non-condensing)
	Certifications	CE, FCC Class B

D614 Product SPEC

2.95 M

2026-07-15

Download
