DN76-RK3568 Android Signage Player-Giada

RK3568 4-Cores Processor

The ultra-compact Android player is equipped with Quad-core Cortex-A55 up to 2.0GHz processor. It supports onboard dual channels DDR4 memory, eMMC5.1 storage and dual band Wi-Fi, Bluetooth 4.2.

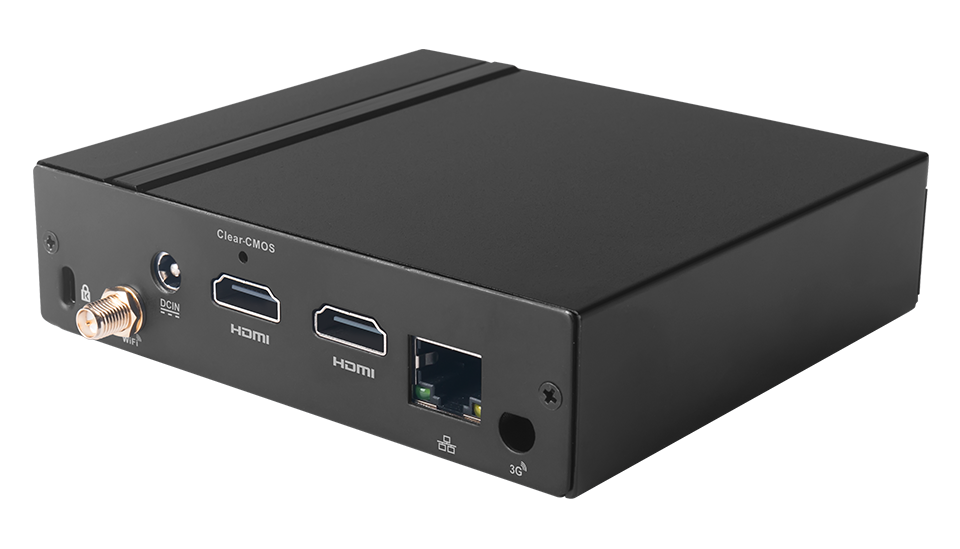

Dual Display Outputs<br/> Support UHD (4K) Video Playback

Dual Display Outputs
Support UHD (4K) Video Playback

The player is adopted Rockchip integrated Mali-G52 GPU, the player supports two different video outputs via 1 x HDMI 2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4a (2560 x 1440 @30 Hz)

Fanless Design

With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

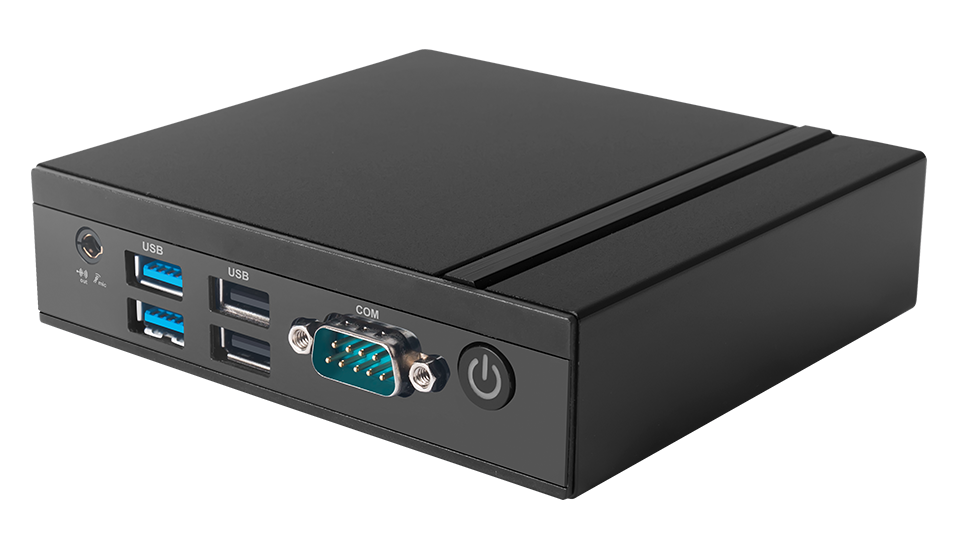

I/O port introduction

CPU	CPU	Rockchip RK3568
	Frequency	2.00 GHz
	Processing units	4 Cores Cortex-A55
	TDP	6 W
Memory	Size	2 GB
Memory	Type	Onboard DDR4
Storage	Onboard	32 GB, Onboard eMMC
Network	Network Controller	1 x Realtek RTL 8211E Gigabit Ethernet
	Ethernet Interface	1 x RJ45
	Wi-Fi/BT	Onboard Wi-Fi/BT module
	Mobile Network	1 x Full-size Mini-PCIe for 3G/4G 1 x SIM Slot
Display	GPU	ARM Mali-G52
	Graphic Engine	OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
	Multi-Media	4K 60fps H.265/H.264/VP9 decoders 1080P 60fps H.265/H.264 encoders
	Display Interface	1 x HDMI (Max. 4096 x 2160 @60 Hz) 1 x HDMI (Max. 2560 x 1440 @30 Hz)
I/O interface	USB	1 x USB3.2 Gen1 (OTG), 1 x USB3.2 Gen1 2 x USB2.0
	Serial Port	1 x RS232
	Audio	1 x 2-IN-1 headset (MIC-IN & AUDIO-OUT)
	Button	1 x Power on, 1 x Recovery
	Antenna	1 x Connector for Wi-Fi/BT 1 x Connector for 3G/4G (Reserved)
System	Watchdog Timer	NA
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Power Requirement	DC-IN, 12 V/2.08 A
	Dimensions	116.6 mm x 107.4 mm x 30 mm (4.59” x 4.23” x 1.18”)
	Construction	Metal, Black
	Operating System	Android 11
	Operating Temperature	0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
	Humidity	95% @ 45°C (non-condensing)
	Certifications	CE, FCC Class B
