Display
|
Display Resolution
|
1200 x 800 @60 Hz (16:9)
|
|
Color performance
|
16.7m colors
|
|
|
Brightness
|
300 cd/m2
|
|
|
Response Time
|
<6.5ms
|
|
|
Viewing Angle
|
85/85/85/85 (L/R/U/D)
|
|
|
Contrast Ratio
|
>600:1
|
|
|

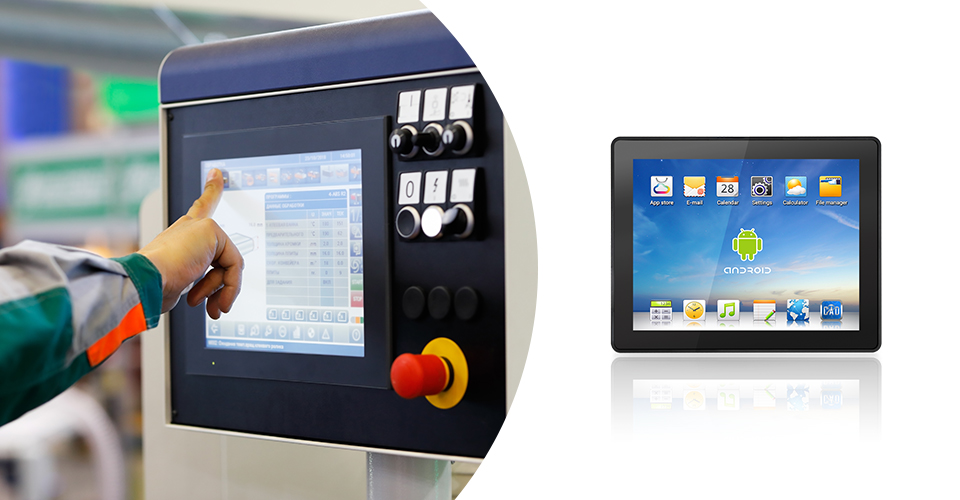

Touch
|
Type
|
Capacitive Touch Screen, Full Lamination
|
|
Input
|
10 points-touch, finger and stylus input
|
|
|
Resolution (DPI)
|
500 DPI
|
|
|
Hardness
|
≥6H
|
|
| Processor | CPU |
Rockchip® RK3576 processor
|
|
Processing Units
|
4 Cores Cortex-A72 & 4 Cores Cortex-A53
|
|
| NPU | 6TOPS RKNN | |
| TDP | 6 W | |
|
I/O
|
USB |
1 x Type-C( OTG, DP, USB3.2 Gen1)
2 x USB3.2 Gen1
|
|
Display Interface
|
1 x HDMI (Max.3840 x 2160 @120 Hz)
|
|
|
COM
|
2 x RS232
|
|
|
Audio
|
1 x MIC-IN, 1 x AUDIO-OUT
1 x 2-IN-1 Headset (AUDIO-OUT & MIC-IN) |
|
| Ethernet Interface |
2 x 1 GbE RJ45
|
|
| Phoenix terminal | 12pin phoenix contact, 6 x GPIO, 2 x RS232 | |
|
Button
|
1 x Power on, 1 x Recovery
|
|
|
Network
|
Network Controller
|
2 x Realtek RTL8211F Gigabit Ethernet |
|
Wi-Fi/BT
|
Onboard Wi-Fi/BT module
|
|
|
Mobile Network
|
NA | |
| System |
GPU
|
ARM Mali-G52 MC3 |
|
Graphic Engine
|
OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
|
|
|
Multi-Media
|
8K30 H.264/H.265/VP9/AV2/AVS2 Decoder 4K60 H.264/H.265 Encoder |
|
|
System Memory
|
4 GB, Onboard LPDDR4x
|
|
|
Storage
|
64 GB, Onboard eMMC (Optional: 128GB) 1 x TF Card Reader |
|
|
Power Requirement
|
DC-IN 5.5*2.5, 12 V/3 A
|
|
|
Dimensions
|
260.5 x 178.4 x 50mm (10.26” x 7.02” x 1.97”)
|
|
|

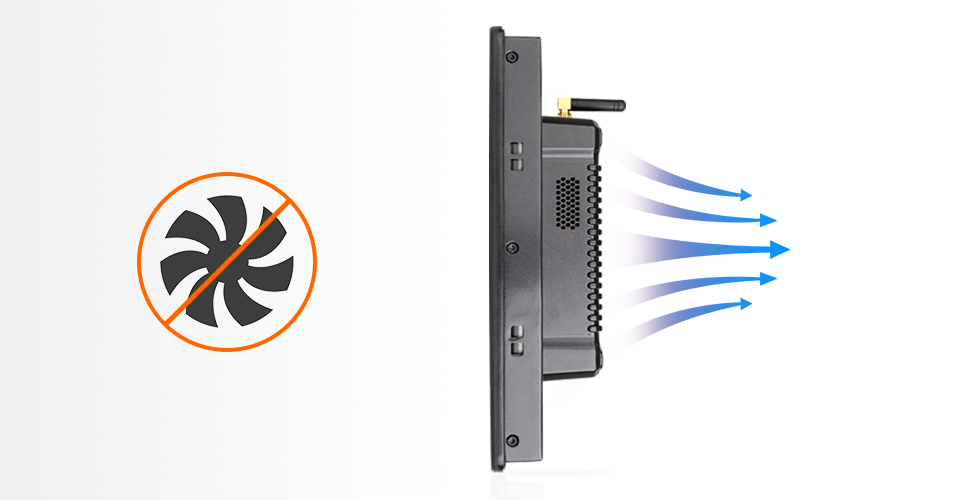

Cooling System
|
Fanless, passive cooling | |
|
Operating System
|
Android 14, Debian 12
|
|
|
Operating Temperature
|
0°C ~ 60°C (32°F ~ 140°F) @0.7m/s Air Flow
|
|
|
Storage Temperature
|
-20°C ~ 75°C (-4°F ~ 167°F)
|
|
|
Humidity
|
95% @ 60°C (non-condensing)
|
