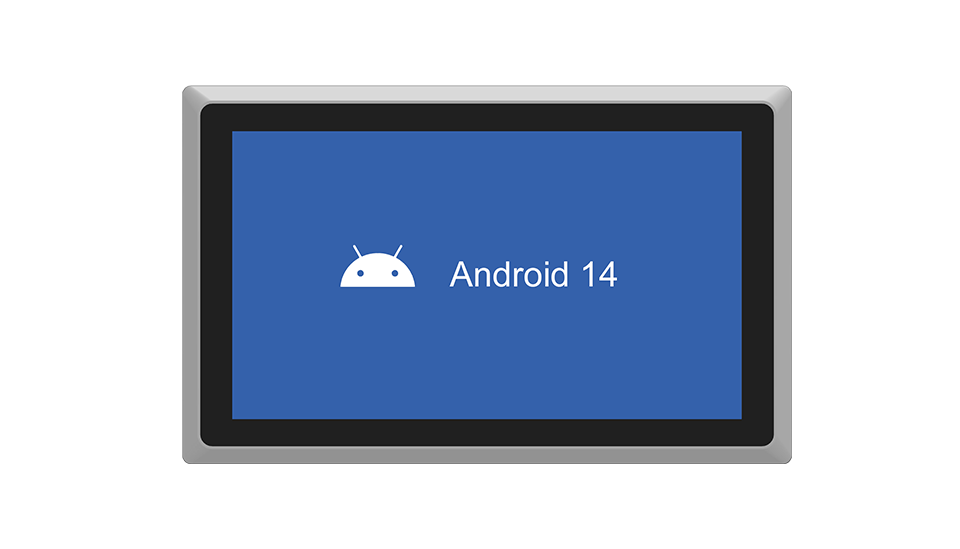

Giada AP708-156C HMI Panel PC

15.6-inch Touch Screen

The AP708-156C features a 15.6-inch Full HD display with a resolution of 1920×1080, delivering clear and vibrant visuals for industrial applications. Its 10-point capacitive touchscreen ensures smooth and highly responsive interaction, with a response time of under 6.5 ms. With a brightness of 350 nits and wide 85° viewing angles in all directions, the screen remains easily visible in various environments. The fully laminated design, combined with durable ≥6H hardness glass, enhances both display clarity and long-term reliability, making it an ideal choice for interactive HMI applications such as kiosks, factory control panels, and smart systems.

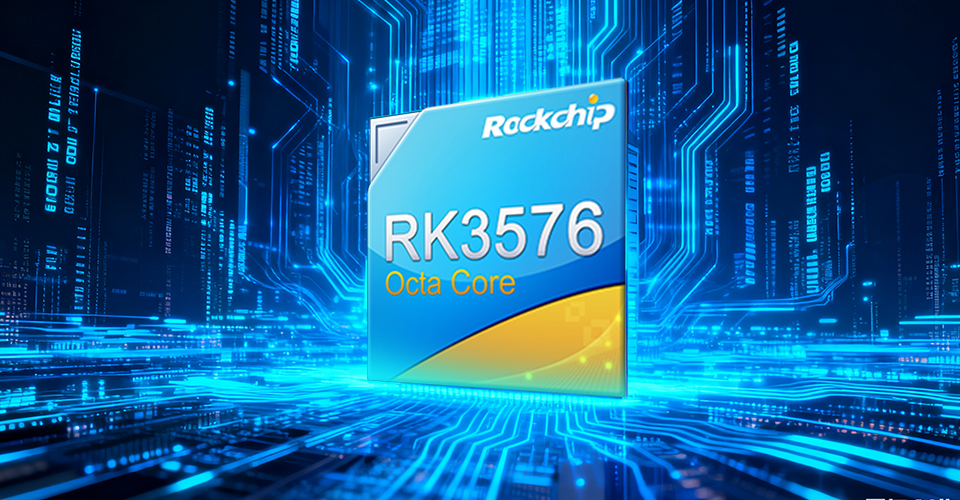

Rockchip RK3576 Processor

The Giada AP708-156C is powered by the advanced Rockchip RK3576 processor, delivering reliable and efficient performance for demanding applications, such as automotive manufacturing and industrial equipment. The Rockchip platform ensures smooth operation, quick response, and stable multitasking capability.

Comprehensive I/O Connectivity

The Giada AP708-156C is equipped with a wide range of interfaces, including HDMI, RS232/RS485, USB, Type-C, and 8 x GPIO. It offers maximum flexibility for connecting peripherals, sensors, and control devices—making it adaptable to diverse kiosk, automation and HMI scenarios.

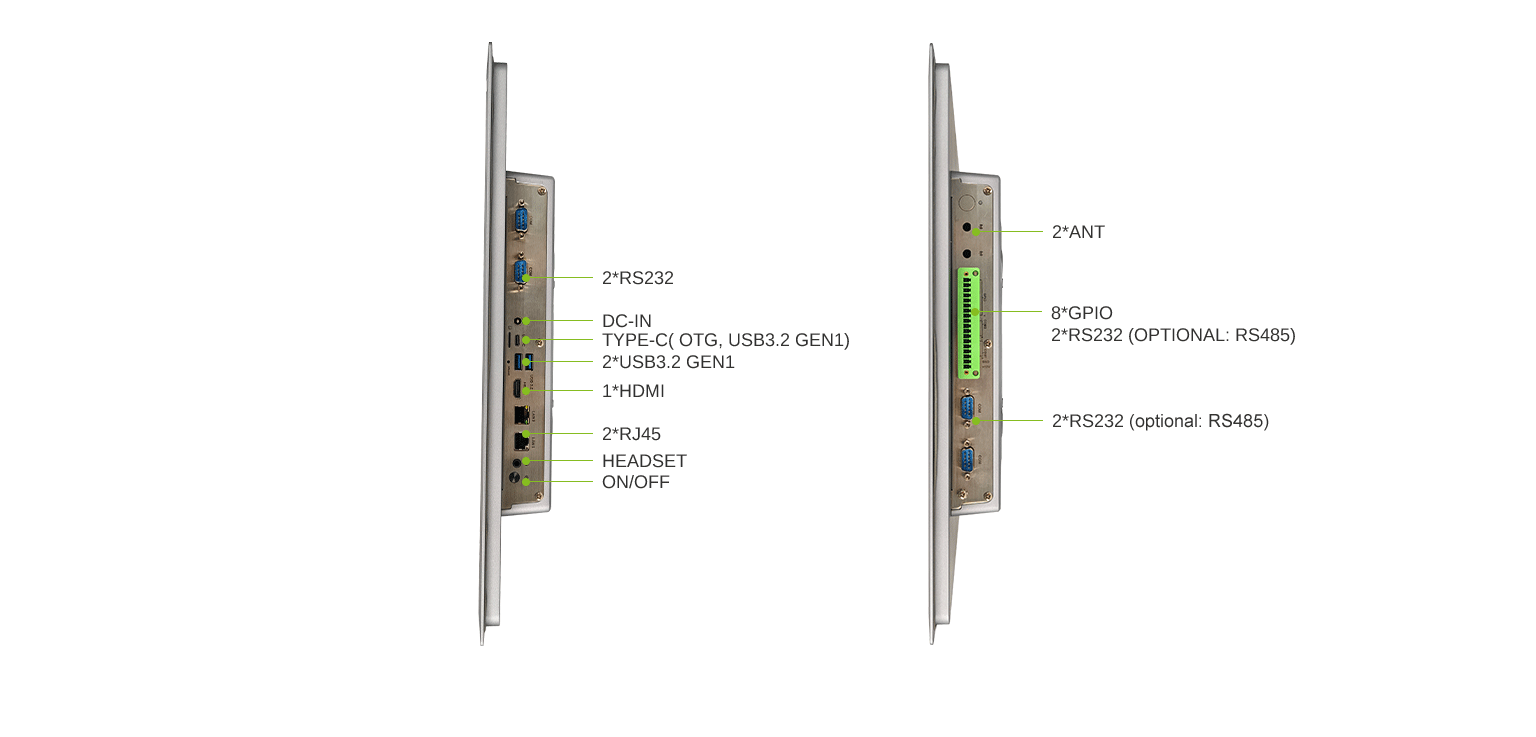

I/O port introduction

Display	Display Resolution	1920 x 1080 @60 Hz (16:9)
	Color performance	16.7m colors
	Brightness	350 cd/m2
	Response Time	<6.5ms
	Viewing Angle	85/85/85/85 (L/R/U/D)
	Contrast Ratio	1200:1
Touch	Type	Capacitive touchscreen, Full Lamination
	Input	10 points-touch, finger and stylus input
	Resolution (DPI)	500 DPI
	Hardness	≥6H
Processor	CPU	Rockchip® RK3576 processor
	Processing Units	4 Cores Cortex-A72 & 4 Cores Cortex-A53
	NPU	6TOPS RKNN
	TDP	6 W
I/O	USB	1 x Type-C( OTG, USB3.2 Gen1) 2 x USB3.2 Gen1
	Display Interface	1 x HDMI (Max.3840 x 2160 @120 Hz)
	COM	2 x RS232, 2 x RS232 (Optional: RS485)
	Audio	1 x 2-IN-1 Headset (AUDIO-OUT & MIC-IN)
	Ethernet Interface	2 x 1 GbE RJ45
	Phoenix terminal	18pin phoenix contact, 8 xGPIO, 2 x RS232 (Optional: RS485)
	Button	1 x Power on, 1 x Recovery
Network	Network Controller	2 x Realtek RTL8211F Gigabit Ethernet
	Wi-Fi/BT	Onboard Wi-Fi/BT module supports Wi-Fi6 2.4GHz/5GHz, Bluetooth5.4
	Mobile Network	NA
System	GPU	ARM Mali-G52 MC3
	Graphic Engine	OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
	Multi-Media	8K30 H.264/H.265/VP9/AV2/AVS2 Decoder 4K60 H.264/H.265 Encoder
	System Memory	4 GB, Onboard LPDDR4x
	Storage	64 GB, Onboard eMMC (Optional: 128 GB) 1 x MicroSD slot
	Power Requirement	DC-IN 5.5*2.5, 12 V/3 A
	Dimensions	411.6mm x 255.6mm x 56.5mm (16.20” x 10.06” x 2.22”)

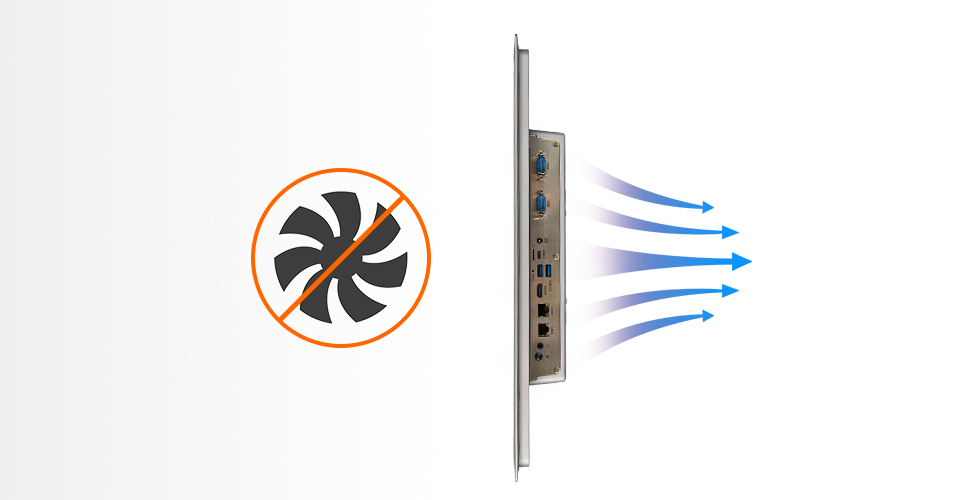

	Cooling System	Fanless, passive cooling
	Operating System	Android 14, Debian 12
	Operating Temperature	0°C ~ 60°C (32°F ~ 140°F) @0.7m/s Air Flow
	Storage Temperature	-20°C ~ 75°C (-4°F ~ 167°F)
	Humidity	95% @ 60°C (non-condensing)

AP708-156C Product SPEC

856.15 KB

2026-04-03
