Thin Mini-ITX Motherboard Adopting Intel Celeron J6412 CPU

Intel Elkhart Lake Processors<br/> Long Product Life Cycle

Intel Elkhart Lake Processors
Long Product Life Cycle

Giada IB4-271, a thin Mini-ITX motherboard, adopts Elkhart Lake Celeron J6412 with TDP of 10W. The motherboard is based on Intel® IOTG roadmap with 7+ years' lifespan. The Elkhart Lake platform has up to 1.7x improvement in single-thread performance and up to 1.5x improvement in multi-thread performance generation over generation.

With 3 Display Outputs<br/> Supporting 4K Resolution

With 3 Display Outputs
Supporting 4K Resolution

The motherboard has three display outputs, including a DP, an HDMI and a LVDS ports. Adopting Intel® UHD Graphics, the motherboards supports 4K display via the HDMI (4096 x 2160 @60 Hz) and DP (4096 x 2160 @60 Hz) ports.

Supporting Wi-Fi 6

With Wi-Fi 5/6 support, Giada IB4-271 offers lightning-fast data transfer speeds and seamless connectivity to a wide range of peripherals. Whether you need to connect multiple high-resolution displays or transfer large files quickly, the Giada motherboard has got you covered.

Fanless Design

With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® motherboard applicable in mission critical applications.

I/O port introduction

Processor	CPU	Intel® Celeron® J6412 processor
	Frequency	2.60 GHz
	Chipset	SoC
	Processor Units	4 Cores
	TDP	10 W
Rear I/O	USB	2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
	Display Interface	1 x HDMI (Max.4096 x 2160 @60 Hz) 1 x DP (Max.4096 x 2160 @60 Hz)
	Audio	1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
	Ethernet Interface	2 x RJ45

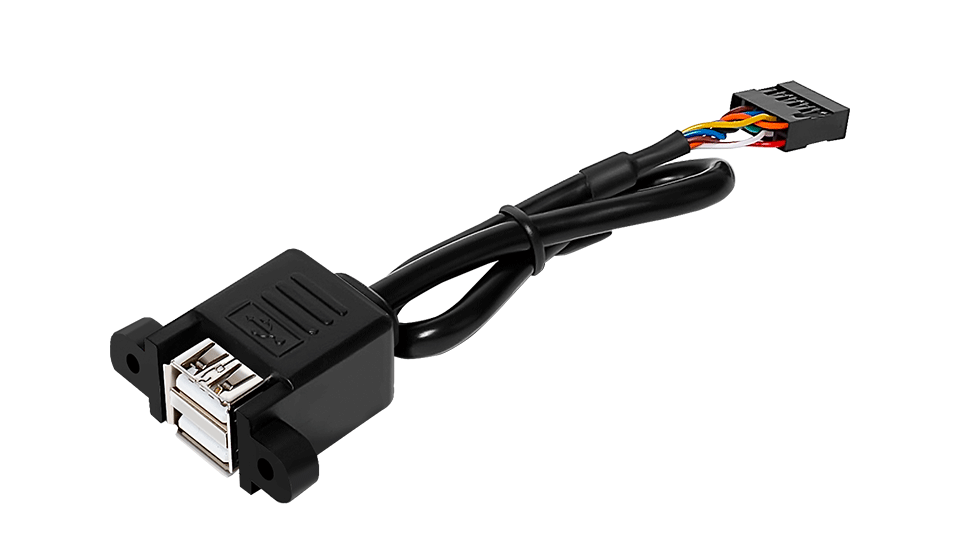

Internal I/O	USB	2 x USB3.2 Gen1, signal by 1 x 19pin header 2 x USB2.0, signal by 1 x 9pin header
	Display	1 x 30pin dual channel 24bit LVDS 1 x 20pin eDP colay with LVDS 1 x 16pin J_HDMI colay with HDMI

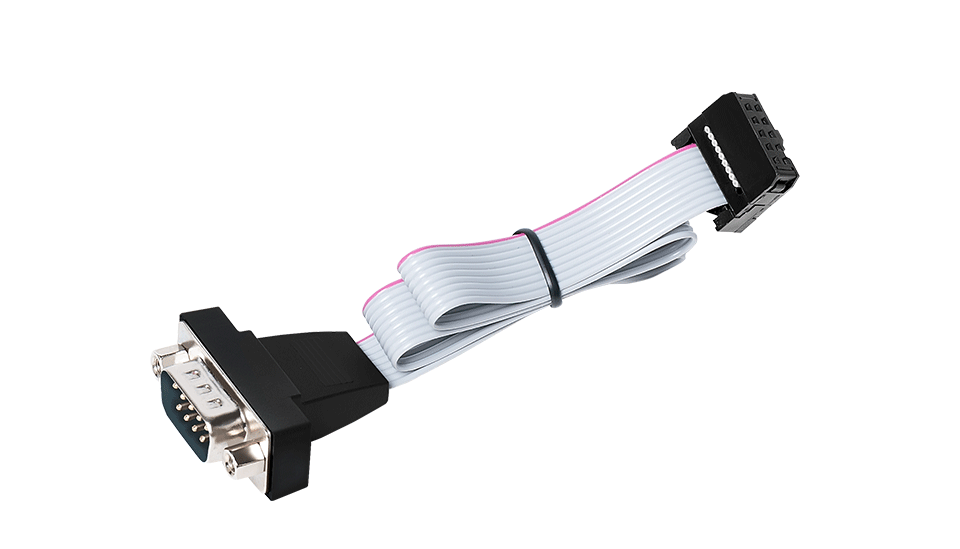

	Serial port	4 x RS232, signal by 4 x 9pin header 2 x RS232/422/485, signal by 2 x 9pin header
	Power	1 x 4pin ATX PWR_IN, 2 x 4pin HDD_PWR
	Audio	1 x 10pin FP_AUDIO, 1 x 4pin SPEAKER
	Others	4 x GPI, 4 x GPO 1 x 10pin F_PANEL 1 x 3pin CLR_CMOS 1 x 8pin INVERTER 1 x 4pin SYS_FAN, 1 x 4pin CPU_FAN
Network	Network Controller	2 x Realtek RTL 8111H Gigabit Ethernet
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6
	Mobile Network	1 x B-Key M.2 (3042) for 3G/4G module, 1 x SIM Slot
System	GPU	Intel® UHD Graphics (by CPU)
	Graphic Engine	DirectX, OpenGL, OpenCL, Intel® Quick Sync Video
	System Memory	Up to 32 GB, 2 x SO-DIMM DDR4-3200 MHz
	Storage	1 x M-Key M.2 (2280) for SSD 2 x SATAIII
	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Power Requirement	DC-IN, 12~24 V
	Dimensions	Thin Mini-ITX, 170 mm x 170 mm (6.69” x 6.69”)
	Operating system	Windows10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating Temperature	0°C ~60°C (32°F~114°F) @0.7m/s Air Flow
	Storage Temperature	-20°C ~75°C (-4°F~167°F)
	Humidity	95% @ 60°C (non-condensing)
