AI Edge Computing & 4K Digital Signage Player

Intel Wildcat Lake Processors<br />Built-in AI Acceleration

Intel Wildcat Lake Processors
Built-in AI Acceleration

Powered by Intel Wildcat Lake processors, the Giada DK320 delivers strong computing performance in an ultra-compact form factor. Available with Intel Core 3 Processor 304 and Intel Core 5 Processor 315, it is designed to handle demanding digital signage, edge computing, and embedded applications with ease. The integrated NPU provides up to 18 TOPS of AI computing power, enabling smarter edge AI workloads such as real-time analytics, intelligent monitoring, and automated decision-making.

Dual 4K HDMI Displays

Combined with Intel Xe3 Graphics, the DK320 supports dual independent HDMI outputs, each delivering up to 4096 × 2304 resolution at 60Hz. This makes it ideal for multi-screen digital signage, retail advertising, corporate communication, and control room environments where vivid, synchronized content presentation is essential. High-resolution output paired with Intel graphics technology guarantees smooth playback and reliable operation for 24/7 commercial use.

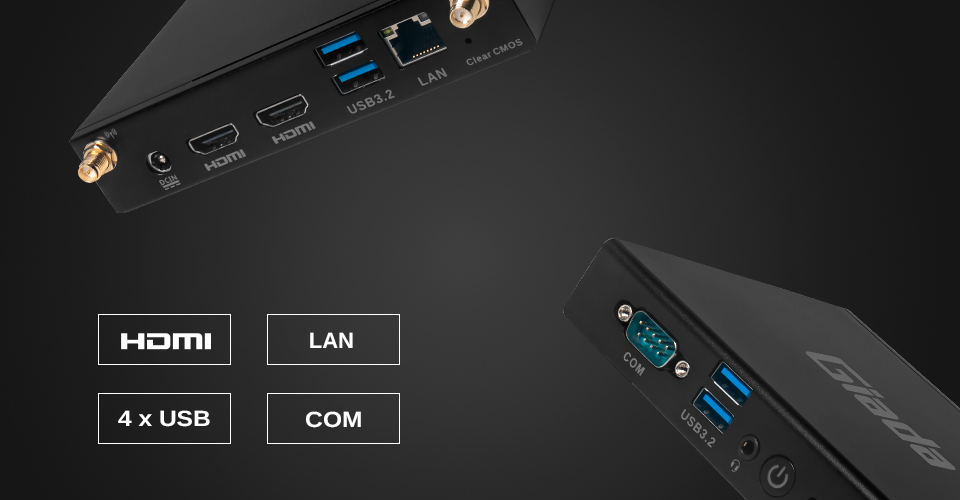

High-Speed Connectivity

Built for modern connectivity needs, the DK320 includes a USB 3.2 Gen2 ports with 10 Gbps transfer speed, one RS232 serial port, one 2.5GbE LAN port powered by Intel i226-LM, and support for Wi-Fi 6, Wi-Fi 6E, and Wi-Fi 7 through an M.2 E-Key slot. These rich I/O options provide excellent compatibility with peripherals, sensors, industrial devices, and network infrastructures, making the DK320 highly adaptable for various business and industrial scenarios.

I/O port introduction

Processor	CPU	Intel® Core™ 3 Processor 304 Intel® Core™ 5 Processor 315
	Chipset	SoC
	NPU	Up to 18 TOPS
	TDP	15 W
Memory	Size	Up to 48 GB
Memory	Type	1 x SO-DIMM，DDR5 6400MHz
Storage	M.2	1 x M.2 (2242/2280) PCIe4.0 X4 for SSD
Display	GPU	Intel® Xe3 Graphics (1 Xe3 core)/ Intel® Xe3 Graphics (2 Xe3 cores)
	Graphic Engine	eDP1.5, DP 2.1 HBR3, HDMI 2.0b (TMDS only)
	Display Interface	2 x HDMI (Max.4096 x 2304 @60 Hz)
Network	Network controller	1 x Intel® i226-LM Gigabit Ethernet
	Ethernet interface	1 x 2.5 GbE RJ45
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 6, Wi-Fi 6E (CNVi), Wi-Fi 7
	Mobile network	NA
I/O interface	USB	1 x USB3.2 Gen2 (10 Gbps) 3 x USB3.2 Gen1 (5 Gbps)
	Serial port	1 x RS232
	Audio	1 x 2-IN-1 headset (MIC-IN & AUDIO-OUT)
	Button	1 x Power on, 1 x CLR-CMOS
	Antenna	2 x Connector for Wi-Fi/BT
System	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day
	Power Requirement	DC-IN, 19 V/3.42 A
	Dimensions	130 mm x 129.3 mm x 25.4 mm (5.12” x 5.09” x 1”)
	Construction	Metal, Black
	Cooling System	Active cooling, smart fan
	Operating system	Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating temperature	0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
	Humidity	95% @ 45°C (non-condensing)
	Certifications	CE, FCC Class B, UKCA
