| Processor | CPU |
Intel® Processor N97
Intel® Atom X7211E Processor |
|
Chipset
|
SoC
|
|
|
Processing Units
|
4 Cores/2 Cores
|
|
|
TDP
|
12 W/6 W
|
|
| Memory | Size | 8 GB (Optional: 16 GB) |
| Type |
Onboard LPDDR5-4800 MHz, Single-channel
|
|
|
Storage
|
Socket 1 |
1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
|
|
Display
|
GPU
|
Intel® UHD Graphics
|
|
Graphic Engine
|
DirectX 12.1, OpenGL 4.6, OpenCL 3.0
|
|
|
Display Interface
|
1 x DP1.2 (Max.4096 x 2160 @60Hz)
1 x HDMI2.0 (Max.4096 x 2160 @60Hz)
|
|
|
Network
|
Network Controller
|
1 x Intel l i226-V Gigabit Ethernet, 1 x Intel i210-AT Gigabit Ethernet |
|
Ethernet Interface
|
1 x 2.5 GbE RJ45, 1 x 1 GbE RJ45
|
|
|
Wi-Fi/BT
|
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6/6E
|
|
|

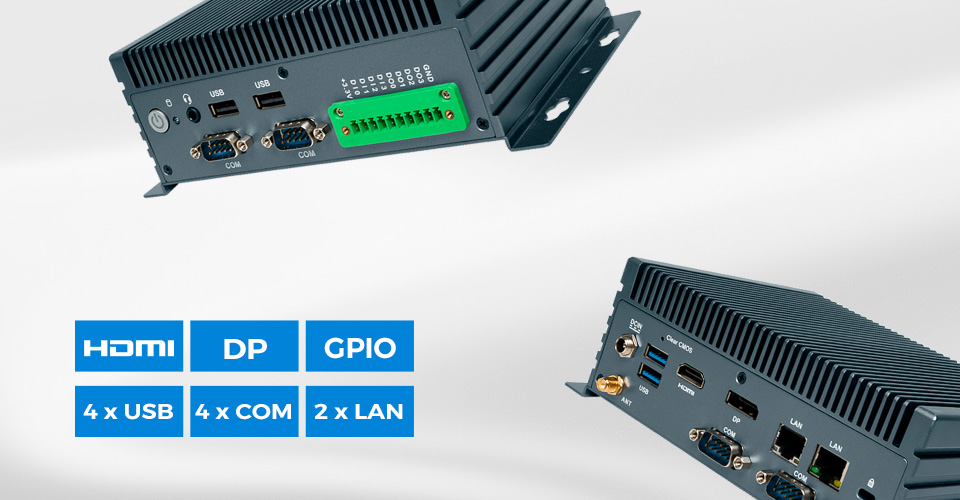

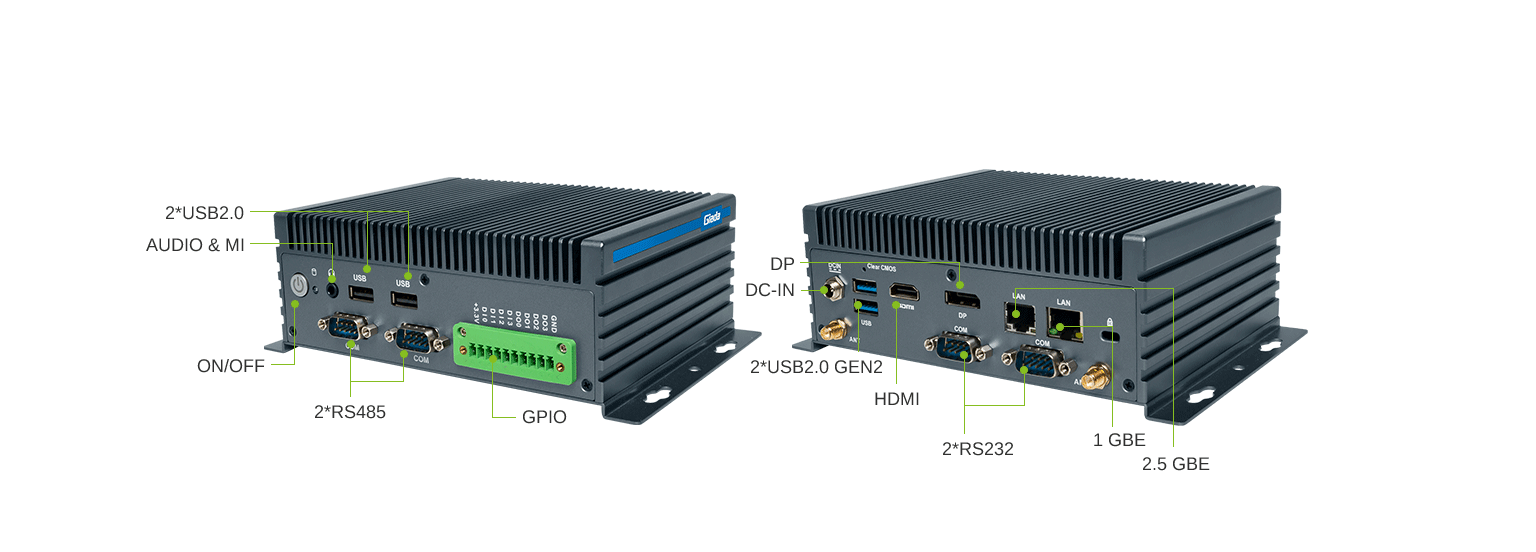

I/O interface
|
USB
|
2 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
|
|
Serial Port
|
2 x RS232, 2 x RS485
|
|
|
Audio
|
1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) | |
|
Button
|
1 x Power on, 1 x CLR-CMOS
|
|
| GPIO |
10pin GPIO (4 x GPI, 4 x GPO)
|
|
|
Antenna
|
2 x Connector for Wi-Fi/BT
|
|
|
System
|
TPM
|
Optional: TPM2.0
|
|
Watchdog Timer
|
Yes | |
|
Auto Power On
|
Yes
|
|
|
RTC
|
Set up independently every day, a week as a cycle
|
|
|
Power Requirement
|
Lockable DC-IN, 12~24 V, 45 W
|
|
|
Dimensions
|
162 mm x 130 mm x 60 mm (6.37” x 5.12” x 2.36”)
|
|
|
Construction
|
Metal, Grey
|
|
|
Operating System
|
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
|
|
|
Operating Temperature
|
-20°C ~60°C (-4°F~140°F) @0.7m/s Air Flow
|
|
|
Humidity
|
95% @ 45°C (non-condensing)
|
|
|
Certifications
|
CE, FCC Class B, UKCA
|
