PC615

High Performance OPS
Intel Core Ultra CPU Inside
5K Resolution
AI-Ready with Intel Core Ultra Platform
AI-Ready with Intel Core Ultra Platform
Giada PC615 is equipped with the Intel Meteor Lake Core Ultra 5 125U (Meteor Lake), delivering a strong balance of performance and power efficiency. It integrates CPU, GPU, and NPU to accelerate both traditional workloads and AI-driven applications. This makes PC615 an ideal choice for modern digital signage, enabling smooth content playback, real-time data processing, and intelligent edge computing.
Supporting 4K/5K Ultra HD Playback
Supporting 4K/5K Ultra HD Playback
Giada PC615 delivers outstanding media playback performance powered by Intel Arc graphics, ensuring smooth and reliable visual output for demanding digital signage applications. The device supports up to 4K resolution (4096 x 2160 @ 60Hz) via both HDMI and DisplayPort, while the JAE interface further extends capability up to 5K (5120 x 2880 @ 60Hz). Combined with Intel Quick Sync Video technology, the PC615 ensures seamless video playback, making it an ideal solution for high-resolution, multi-format content delivery in commercial display environments.
Support Wi-Fi 6E/7/BT
Support Wi-Fi 6E/7/BT
Giada PC615 is equipped with an E-Key M.2 (2230) slot for Wi-Fi and Bluetooth modules, supporting both Wi-Fi 6E and the latest Wi-Fi 7 (CNVi) for faster, more stable, and lower-latency wireless connectivity. With access to the 6 GHz band, Wi-Fi 6E helps reduce network congestion and ensures smoother data transmission, while Wi-Fi 7 further enhances bandwidth and responsiveness for high-demand commercial environments. Combined with dual antenna connectors for stronger signal performance, PC615 provides seamless wireless communication for digital signage, interactive displays, smart meeting rooms, and modern education applications where reliable connectivity is essential.

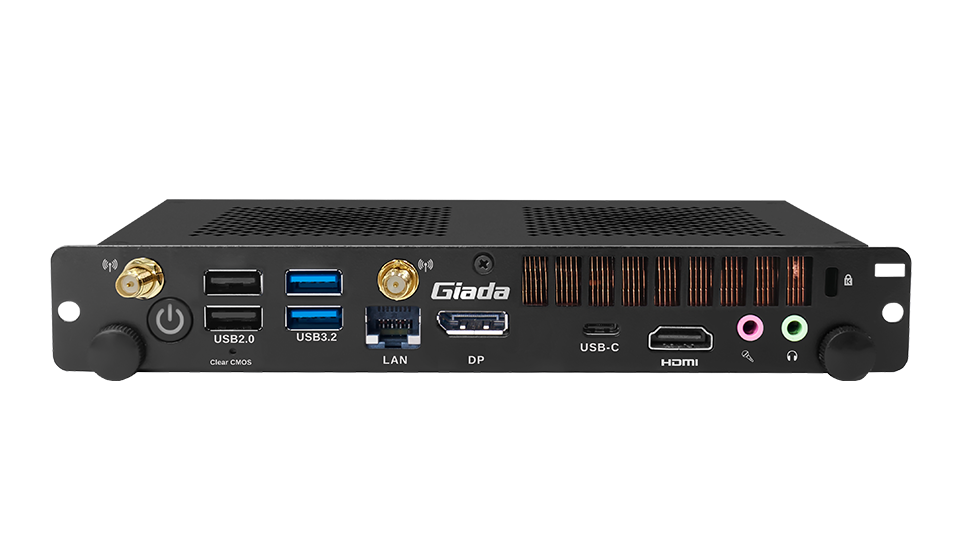

I/O port introduction
CPU CPU
Intel® Core™ U5-125U processor
Intel® Core™ U7-155U processor
Intel® Core™ U5-125H processor
Intel® Core™ U7-155H processor

Chipset

SoC

Total Cores

12 Cores / 14 Cores / 16 Cores
Total Threads 14 / 18 / 22
NPU 11 TOPS

TDP

15 W / 28 W
Memory Size Up to 96 GB
Type 2 x SO-DIMM DDR5-5600 MHz
Storage Socket 1 x M.2 (2242/2280) PCIe4.0 X4 & SATA for SSD
1 x M.2 (2280) PCIe4.0 X4 for SSD
Display

GPU

Intel® Arc™ Graphics

Graphic Engine

DirectX12.1, OpenGL4.6, OpenCL3.0
Intel® Quick Sync Video

Display Interface

1 x HDMI (Max. 4096 x 2160 @60 Hz)
1 x DP (Max. 4096 x 2160 @60 Hz)
JAE Interface
DP/HDMI (Max. 5120 x 2880 @60Hz)
Network Network Controller 1 x Intel® i219LM Gigabit Ethernet
Ethernet Interface 1 x RJ45
Wi-Fi/BT 1 x E-Key M.2 (2230) for Wi-Fi/BT
Support Wi-Fi 6E, Wi-Fi 7 (CNVi)
Mobile Network NA
I/O interface

USB

1 x USB Type-C3.2 Gen2
2 x USB3.2 Gen2, 2 x USB2.0

Serial Port

NA

Audio

1 x MIC-IN, 1 x AUDIO-OUT

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Connector for Wi-Fi/BT

System TPM Optional: TPM2.0
Power Requirement
DC jack/80pin JAE
DC-IN, 12 V~19 V
Dimensions 200 mm x 119 mm x 30 mm (7.87” x 4.69” x 1.18”)
Construction Metal, Black
Operating System Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity 95% @ 45°C (non-condensing)
Certifications CE, FCC Class B

PC615 Product SPEC
755.05 KB
2026-03-31
Download
PC615 User Manual
5.08 M
2026-03-31
Download
