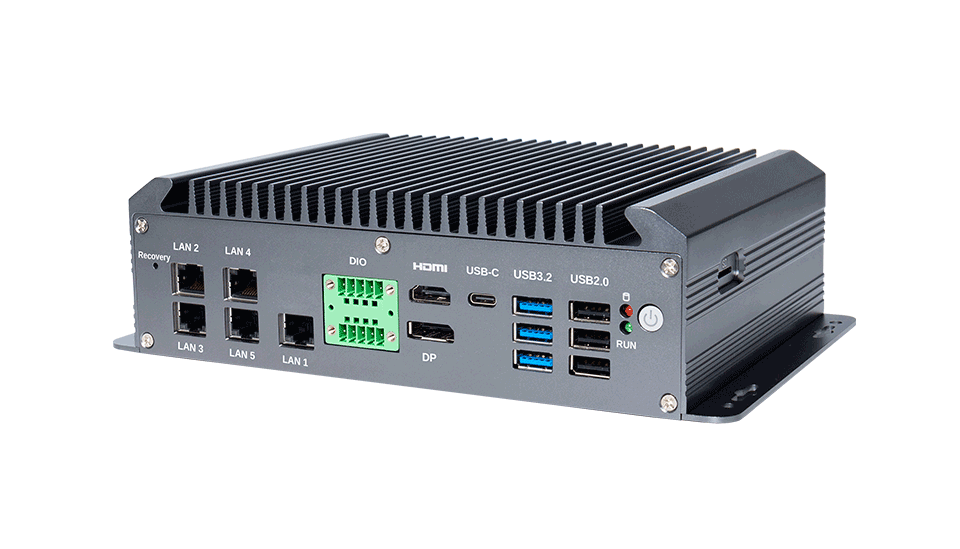

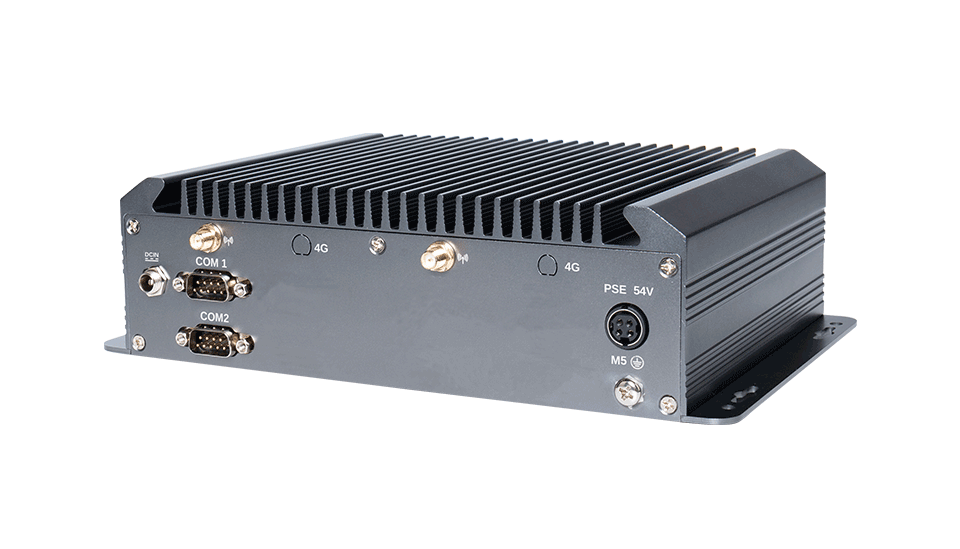

ARM-based Industrial AI PC

Rockchip RK3588 Processor

The ultra-compact Android player is powered by Rockchip RK3588 processor, which integrates quad-core Cortex-A76 and quad-core Cortex-A55. The 8nm chip is a high-performance, low-power and cached application processor. Rockchip RK3588 integrated GPU, VPU and NPU The build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation and its computing power is up to 6TOPs.

Wide-range Temperature & Voltage

The Giada AR707 is built to withstand extreme conditions, operating within a broad temperature range of -20℃ to 70℃(RK3588J), making it perfect for rugged and demanding environments. With its wide voltage range of 12V to 24V, the embedded PC is ideal for a variety of applications, including industrial automation, process control, and outdoor kiosk.

Supporting Android 14/Debian 12

The Giada Industrial AI PC AR707 revolutionizes industrial automation with its dual support for Android 14 and Debian 11, offering unparalleled software flexibility. Android 14 enhances connectivity, security, and app integration, while Debian 12 delivers stability and compatibility with advanced AI frameworks.

Rich industrial I/O

Designed as a true embedded control hub, the Giada AR707 offers an extensive range of field-ready industrial I/O interfaces, including 2 x COM ports and 10pin GPIO, optional additional 4 x COM ports and 2 x CAN-FD, enabling easy integration with complex systems.

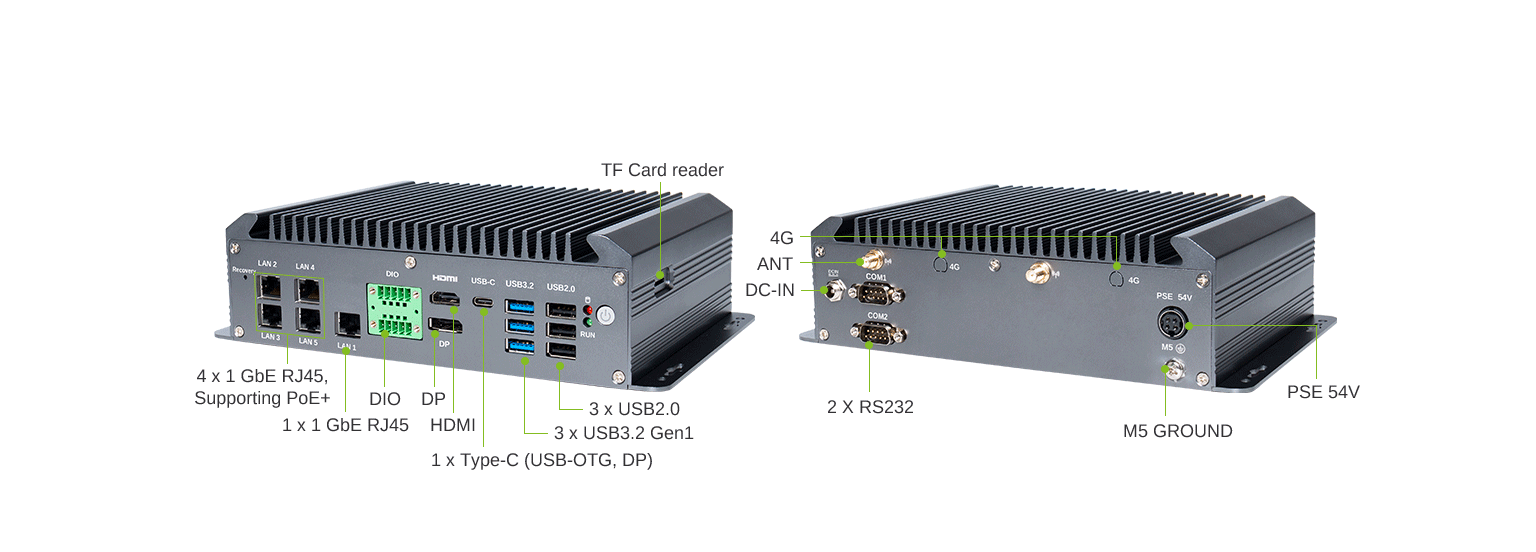

I/O port introduction

CPU	CPU	Rockchip RK3588 Rockchip RK3588J
	Processing units	4 Cores Cortex-A76 & 4 Cores Cortex-A55
	TDP	15 W
Memory	Size	8 GB
Memory	Type	Onboard 2-channel LPDDR4x
Storage	Onboard	64 GB, Onboard eMMC (Optional: 128GB) 1 x M-key M.2 (2242/2280) for SATA SSD
Network	Network Controller	5 x Intel i210-AT Gigabit Ethernet (RK3588) 5 x Intel i210-IT Gigabit Ethernet (RK3588J)
	Ethernet Interface	4 x 1 GbE RJ45, Supporting PoE+ (LAN2 ~ LAN5) 1 x 1 GbE RJ45 (Optional: 1 x 2.5 GbE RJ45)
	Wi-Fi/BT	1 x E-key M.2 (2230) for Wi-Fi/BT,
	Mobile Network	1 x B-key M.2 (3042) for 4G, 1 x SIM Slot
Display	GPU	ARM Mali-G610 MP4 GPU
	Graphic Engine	OpenGL ES 1.1/2.0/3.2, OpenCL 1.1/1.2/2.0, Vulkan 1.1/1.2
	Multi-Media	H.265/H.264/AV1/AVS2 etc. video decoder, up to 8K@60fps 8K@30fps video encoders for H.264/H.265
	Display Interface	1 x HDMI (Max. 7680 x 4320 @60 Hz) 1 x DP (Max. 7680 x 4320 @60 Hz)
I/O interface	USB	3 x USB 3.2 GEN1, 3 x USB2.0 1 x USB Type-C (USB-OTG, DP1.4)
	Serial Port	2 x RS232 DB9 (Optional: 2 x RS232, 2 x RS485)
	CAN	Optional: 2 x CAN2.0 DB9
	GPIO	10pin GPIO (4 x GPI, 4 x GPO)
	Button	1 x Power on, 1 x Recovery
	Antenna	2 x Connector for Wi-Fi/BT 2 x Connector for 4G (Reserved)
System	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Power Requirement	Lockable DC-IN, 12 ~ 24V, 54V PSE power supply
	Dimensions	234mm x 150mm x 63.5mm (9.21” x 5.90” x 2.50”)
	Construction	Metal, Grey
	Operating System	Android 14, Debian 12
	Operating Temperature	-20℃ ~ 70℃ (-4℉ ~ 158℉) @0.7m/s Air Flow (RK3588J) 0℃ ~ 60℃ (32℉ ~ 140℉) @0.7m/s Air Flow (RK3588)
	Humidity	95% @ 45°C (non-condensing)
	Certifications	CE, FCC Class B, UKCA

AR707 Product SPEC

940.92 KB

2025-04-08

Download

AR707
