Giada RN28
Fanless Network Appliance

Simplify your networking solution with Giada RN28

RN28 is a multi-service gateway adopting Intel Alder Lake-N platform N100 processor, which features fanless design and metal chassis.

In networking solutions, RN28 is capable of simultaneously handling multiple tasks:

  • Edge computing;
  • Vedio encode and decode;
  • Lightweight local storage;
  • PoE power supply;
  • Network route (vRouter);
  • The Giada RN28 can effectively reduce the number of network devices required in small and medium-sized networking solutions and edge applications. It simplifies network topology design, reduces solution costs, avoids performance redundancy, and enhances operational and management quality.
The RN28 integrates commonly used functions of edge gateways and is suitable for use as an NVR workstation and uCPE.
The RN28 provides four 1 GbE RJ45 interfaces (LAN3~LAN6) and supports PoE IEEE802.3af/at protocols. The output power is ≤ 30W, and it is recommended to use PD devices with a rated power consumption of ≤ 25.5W.
2x 1 GbE RJ45 interfaces (LAN1~LAN2) form a pair of bypass.
1x M.2(2230) expansion slot for a Wi-Fi module, supporting Intel® CNVi.
1x M.2(2280) expansion slot for NVMe SSDs
1x SATAIII slot for expanding 2.5-inch hard drives.
It is recommended to use a storage capacity of 1TB or above when storing warm data.

The RN28 is equipped with an Intel N100 processor, which has four times the computing power of the Intel Celeron N3450 processor in Geekbench 6 multicore score and three times in Geekbench R20 multicore score.

The RN28 can efficiently perform edge computing tasks, undertake lightweight customer premises computing tasks, and reduce the reliance of operations on data centers.

Integrated GPU hardware decoding and encoding support:

H.265 / HEVC (8 bit) encode / decode
H.265 / HEVC (10 bit) encode / decode
H.264 encode / decode
VP8 encode / decode
VP9 encode / decode
AV1 decode
AVC encode / decode
VC-1 decode
JPEG encode / decode
Geekbench 6 (Multi-Core)

Geekbench 6 is a benchmark for modern computers, notebooks and smartphones. What is new is an optimized utilization of newer CPU architectures, e.g. based on the big.LITTLE concept and combining CPU cores of different sizes. The multi-core benchmark valuates the performance of all of the processor's CPU cores. Virtual thread improvements such as AMD SMT or Intel's Hyper-Threading have a positive impact on the benchmark result.

Intel Processor N100
4C 4T @3.00 GHz
3129 (100%)
Intel Celeron N3450
4C 4T @2.20 GHz
Ginebench R20 (Multi-Core)

Cinebench R20 is the successor of Cinebench R15 and is also based on the Cinema 4 Suite. Cinema 4 is a worldwide used software to create 3D forms. The multi-core test involves all CPU cores and taks a big advantage of hyperthreading.

Intel Processor N100
4C 4T @3.00 GHz
1076 (100%)
Intel Celeron N3450
4C 4T @2.20 GHz
PassMark - CPU Value

PassMark Software has delved into the millions of benchmark results that Performance Test (Software) users have posted to the web site and produced a comprehensive range of CPU charts to help compare the relative speeds of different processors.
CPU Value (CPU Mark / $Price)

Intel Processor N100
4C 4T @3.00 GHz
43.9 (100%)
Intel Celeron N3450
4C 4T @2.20 GHz

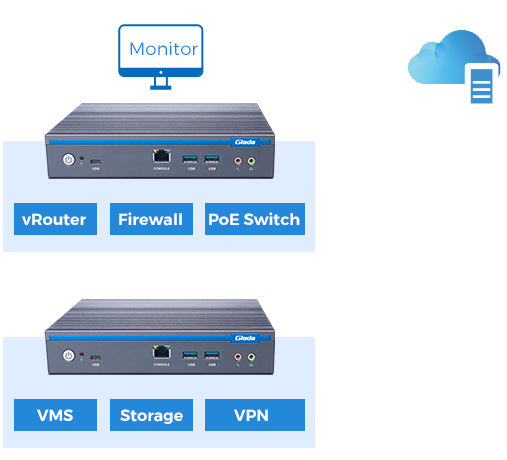

Multi-service uCPE

Deploying software with corresponding functionalities on the RN28 to meet requirements of diverse networking solution.

Using the RN28 as a replacement for your other network devices can streamline the design and deployment of network solutions.

For security or other considerations, you can retain the critical devices from your original setup. The RN28 can flexibly integrate into your network deployment, reducing device redundancy in the solution.

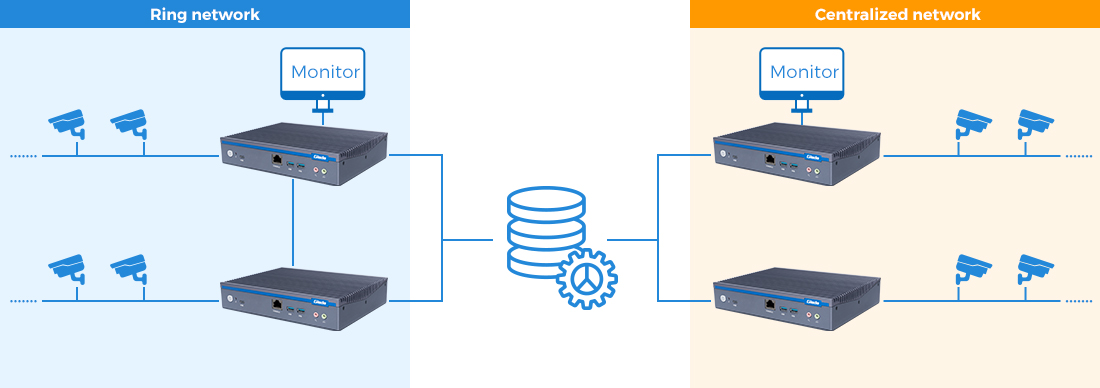

Surveillance NVR Workstation

The RN28 supports PoE IEEE802.3af/at power supply and can be directly connected to PoE devices such as IP cameras, access points, alarm systems, etc.

The RN28 provides one pair of bypass to support ring network.

Giada's patented JAHC technology can reduce non-working time of devices and ensure that devices are not turned on during non-working hours, improving management efficiency.

JAHC Technology

JIEHE Active Hardware Control (JAHC) management system includes both hardware Microcontroller Unit (MCU) and software (JAHC Technology Manager). The reliable system is a patented technology of Giada, which is independent of OS.

JAHC can avoid devices running in non-working hours and help users save power consumption significantly.

The diagram shows how JAHC can control a device through a Microcontroller Unit (MCU).

Automatic Power On
RTC Wake Up
Watchdog Timer
