| CPU | CPU |
Rockchip RK3576 processor |
|
Processing Units |
4 Cores Cortex-A72 & 4 Cores Cortex-A53 |
|
| NPU |
support int4/int8/int16/FP16/BF16/TF32 acceleration |
|
| TDP |
6W |
|
| Memory |
Size |
4 GB (Optional: 8 GB) |
|
Type |
Onboard LPDDR4/ LPDDR4x | |
| Storage | eMMC | 64 GB, Onboard eMMC (Optional: 128GB) |
| M.2 | Optional: 1 x M-Key M.2(2242) PCle3.0 X4 for SSD | |
| Display |
GPU |
Mali-G52MC3 |
|
Graphic Engine |
OpenGL ES3.2, OpenCL2.0, Vulkan |
|
|
Multi-Media |
8K30 H.264/H.265/VP9/AV2/AVS2 Decoder 4K60 H.264/H.265 Encoders |
|
|
Display Interface |
1 x HDMI (Max. 3840 x 2160 @60 Hz) |
|

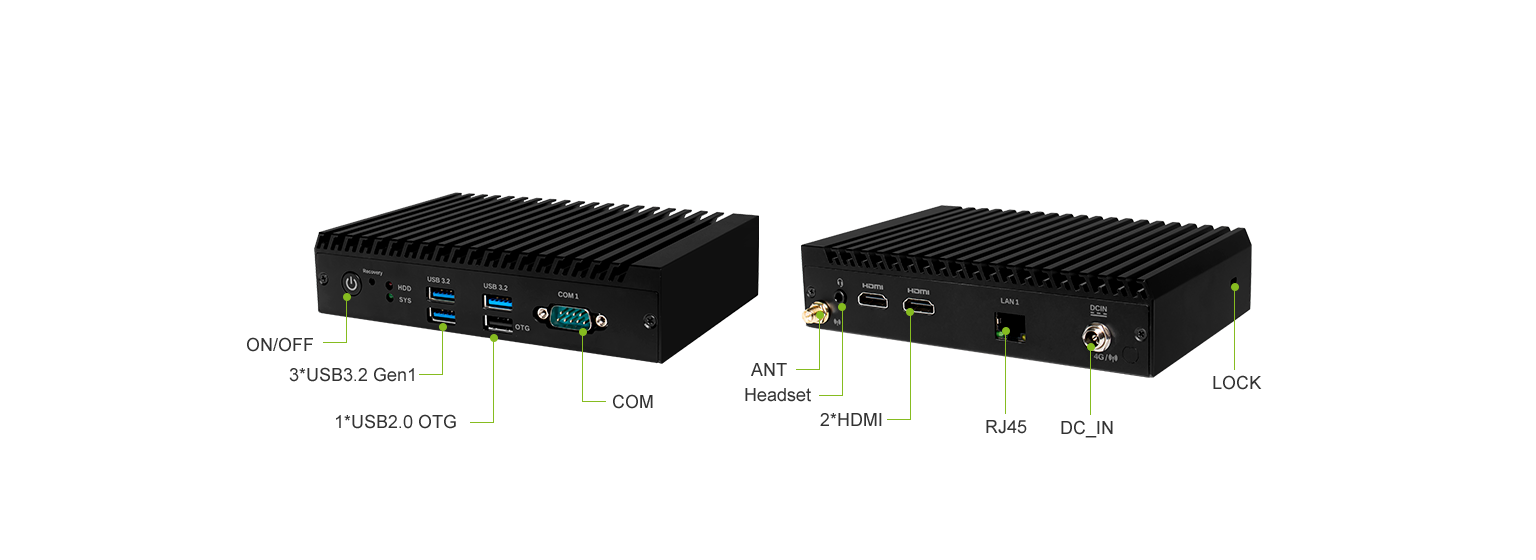

| I/O interface | USB |
3 x USB3.2 Gen1, 1x USB2.0 (OTG) |
|
Serial Port |
1 x RS232 (Optional: 1 x RS232, 2 x RS485) |
|
|
Audio |
1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
|
|
Button |
1 x Power on, 1 x Recovery |
|
|
Antenna |
1 x Connector for Wi-Fi/BT |
|
| Network | Network Controller | Realtek RTL8211F Gigabit Ethernet |
| Ethernet Interface | 1 x RJ45 (Optional: 2 x RJ45) | |
| Wi-Fi/BT | Onboard Wi-Fi/BT module | |
| Mobile Network | 1 x M.2(3042) for 3G/4G 1 x SIM Slot |
|
| System |
Watchdog Timer
|
Yes |
|
Auto Power On
|
Yes | |
|
RTC
|
Set up independently every day, a week as a cycle
|
|
| License |
|
|
|
Power Requirement
|
Lockable DC-IN, 12 V/3 A
|
|
|
Dimensions
|
160 mm x 108 mm x 40 mm (6.50” x 4.25" x 1.57”) | |
|
Construction
|
Metal, Black
|
|
|
Operating System
|
Android 14 / Debian 12
|
|
|
Operating Temperature
|
0°C ~45°C (32°F~113°F)@0.7m/s Air Flow
|
|
|
Humidity
|
95% @ 45°C (non-condensing)
|
|
|
Certifications
|
CE, FCC Class B, UKCA
|
