RK3576 Industrial PC - Giada AF708

Rockchip RK3576 Processor

The Giada AF708 is powered by the advanced Rockchip RK3576 processor, delivering reliable and efficient performance for demanding applications, such as automotive manufacturing and industrial equipment. The Rockchip platform ensures smooth operation, quick response, and stable multitasking capability.

Rich Connectivity

Equipped with ARM Mali-G52 MC3 integrated GPU, Giada AF708 supports 4K display via HDMI, offering enhanced visual performance. It also comes with 4 USB ports, 4 COM ports, 2 LAN ports, and a group of Phoenix contact, allowing seamless connectivity for sensors, control modules, and other peripheral devices. This extensive range of interfaces ensures flexibility and scalability for various industrial and commercial applications.

Flexible OS Options

The Giada AF708 can supports Android 14 or Debian 12, offering unparalleled software flexibility. Android 14 enhances connectivity, security, and app integration, while Debian 12 delivers stability and compatibility with advanced AI frameworks.

Fanless Design

With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada? device applicable in mission critical applications.

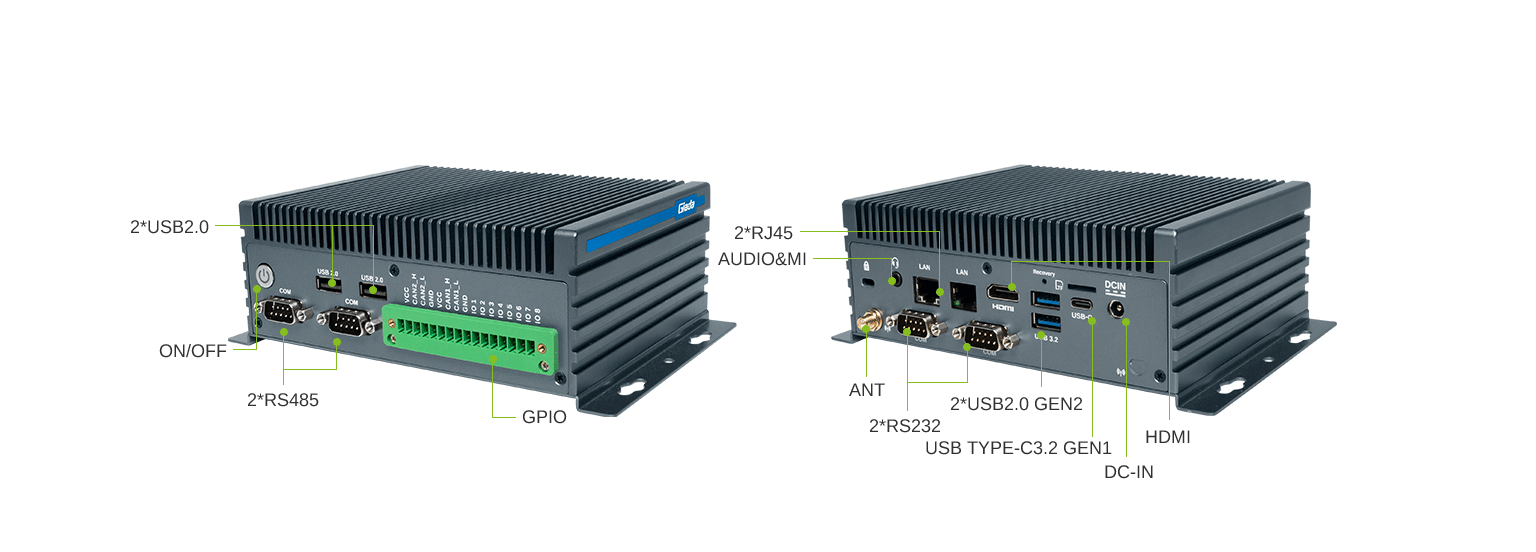

I/O port introduction

Processor	CPU	Rockchip RK3576 processor
	Processing Units	4 Cores Cortex-A72 & 4 Cores Cortex-A53
	NPU	6 TOPS RKNN
	TDP	6 W
Memory	Size	4 GB
Memory	Type	Onboard LPDDR4x, 2 Channels
Storage	Socket 1	32 GB, Onboard eMMC
Storage	Socket 2	1 x TF Card Reader
Display	GPU	ARM Mali-G52 MC3
	Graphic Engine	OpenGL ES 1.1/2.0/3.0, OpenCL 3.0, Vulkan 1.1
	Multi-Media	8K30 H.265/ VP9/ AV1/ AVS2 Decoder 4K60 H.264
	Display Interface	1 x HDMI (Max.3840 x 2160 @60 Hz)
Network	Network Controller	2 x Realtek RTL8211F Gigibit Ethernet
	Ethernet Interface	2 x 1 GbE RJ45
	Wi-Fi/BT	Onboard Wi-Fi/BT modue
I/O interface	USB	2 x USB3.2 Gen1, 2 x USB2.0, 1 x USB Type-C3.2 Gen1 ( OTG, Max. 3840 x 2160 @120Hz)
	Serial Port	2 x RS232, 2 x RS485
	Audio	1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
	Phoenix Contact	16pin, 2 x 4pin CAN, 8 bi-directional GPIOs
	Button	1 x Power on, 1 x CLR-CMOS
	Antenna	1 x Connector for Wi-Fi/BT, 1 x Reserved
System	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Power Requirement	DC-IN, 12V
	Dimensions	162 mm x 130 mm x 60 mm (6.37” x 5.12” x 2.36”)
	Construction	Metal, Grey
	Operating System	Android 14, Debian 12
	Operating Temperature	0°C ~ 60°C (32°F ~ 140°F) @0.7m/s Air Flow
	Humidity	95% @ 45°C (non-condensing)
	Certifications	CE, FCC Class B, UKCA

AF708 Product SPEC
