Intel Raptor Lake Embedded PC for Edge Computing

Intel Raptor Lake-U Refresh Processors

The Giada AE614 is equipped with the latest Intel Raptor Lake-U Refresh processors, offering options of Intel Core 3 Processor 100U and Intel Core 5 Processor 120U. With up to 10 cores and 12 threads, it delivers stronger multitasking performance and enhanced edge computing capabilities while maintaining a low 15W base power consumption for energy-efficient operation.

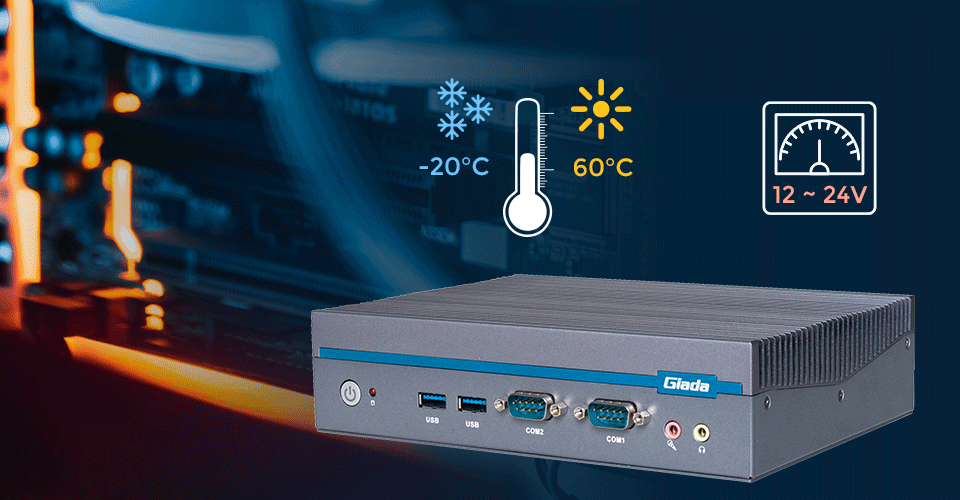

Designed for Industrial Environments

The AE614 is engineered for reliability in demanding conditions. It features a wide operating temperature range of -20°C to 60°C, wide voltage input from 12V to 24V DC, and a durable metal chassis. This robust construction ensures stable 24/7 operation in factories, transportation systems, kiosks, and outdoor deployments.

3 Display Outputs
Supporting 8K

Giada AE614 has 3 display outputs, with a DP and two HDMI ports. Powered by Intel Graphics, Giada AE614 can support 8K resolution (7680 x 4320 @60 Hz), delivering stunning visuals and an immersive multimedia experience. This makes it ideal for digital signage, control rooms, and multi-screen visualization systems.

Fanless Design

With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada device applicable in mission critical applications.

I/O port introduction

CPU	CPU	Intel® Core™ 3 processor 100U Intel® Core™ 5 processor 120U
	Chipset	SoC
	Processing Units	6 Cores /10 Cores
	Configurable TDP-up	15 W /15 W
Memory	Size	Up to 96 GB
Memory	Type	2 x SO-DIMM DDR4-3200 MHz
Storage	Socket 1	1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
Display	GPU	Intel® Graphics
	Graphic Engine	DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
	Display Interface	1 x DP (Max.7680 x 4320 @60 Hz) 2 x HDMI (Max.4096 x 2304 @60 Hz)
Network	Network Controller	1 x Intel i219-LM Gigabit Ethernet 1 x Intel i210-IT Gigabit Ethernet
	Ethernet Interface	2 x 1 GbE RJ45
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
	Mobile Network	1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
I/O interface	USB	4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
	Serial Port	1 x RS232, 1 x RS232/422/485
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	Button	1 x Power on, 1 x CLR-CMOS
	Antenna	2 x Connector for Wi-Fi/BT 2 x Connector for 3G/4G (Reserved)
System	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Power Requirement	DC-IN, 12 ~ 24V, 90W
	Dimensions	200 mm x 150 mm x 50 mm (7.87” x 5.90” x 1.97”)
	Construction	Metal, Grey
	Operating System	Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating Temperature	-20°C ~60°C (-4°F~140°F) @0.7m/s Air Flow
	Humidity	10% ~ 90% @45°C (non-condensing)
	Storage Temperature	-40°~80°C (-40°F~176°F) not include the package
	Certifications	CE, FCC Class B, UKCA

AE614 Product SPEC
