B760 Chipset Small Form Factor Workstation

Adopting Intel 12/13/14th Gen. Core Processors

The workstation adopts Intel® B760 chipset, and it can support Intel® 12th/13th/14th generation socket type processors (TDP≤65W). It supports dual-channel DDR5 memory and it's optimized for AI training and inference, stable diffusion, Llama, LLMs, speech/image recognition, and generative AI.

Supporting Low Profile Graphics Cards

The WA814 features a PCIe X16 slot for expanding PCIe-powered low profile graphics cards. The workstation has the power to deploy and manage cognitive technology platforms within the data science and AI space - including machine learning and deep learning workloads such as generative AI and computer vision.

Compact Structure with Patent Design

Measuring only 3.46L, the WA814 features a patented design that ensures high hardware performance. It uses solid materials without redundancy, balancing heat dissipation and aesthetics, making it suitable for small to medium-sized businesses and personal studios.

Unparalleled Storage Flexibility

The WA814 provides users with powerful expandability. It offers 2 M.2 slot supporting PCIe 4.0 NVMe SSDs, with read/write speeds of 5 GB/s (40Gbps).

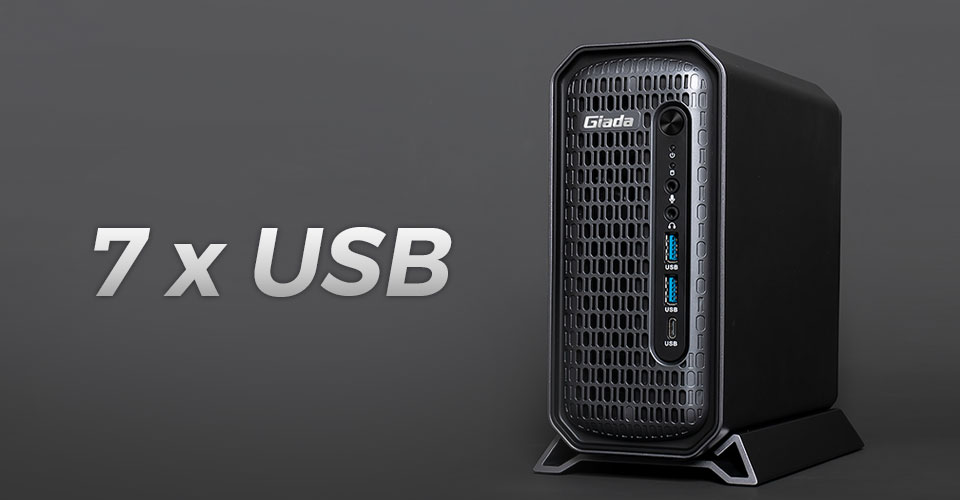

Transforming Connectivity

The WA814 provides one USB-C and six high-speed USB-A ports, along with two COM and two Ethernet ports (one 1GbE and one 2.5GbE). It also includes an M.2 slot reserved for expanding Wi-Fi modules, addressing the data transfer needs of the workstation.

I/O port introduction

CPU	CPU	Intel® Core™ i5-13400 processor Intel® Core™ i7-13700 processor
	Chipset	B760
	Total Cores	10 Cores /16 Cores
	Total Threads	16 /22
	TDP	65 W /65 W
Memory	Size	Up to 96 GB
Memory	Type	2 x SO-DIMM DDR5-5600 MHz
Storage	Socket 1	1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
	Socket 2	1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
	Socket 3	1 x SATAIII
Graphics	iGPU	Intel® UHD Graphics 730/770
	Graphics Card	1 x PCIe X16 slot for Graphics Cards
	GPU Cards Standardize	PCIe-powered (Max. Power Consumption 75W) Low Profile Card (Max. Dimension 6.6” x 2.7”)
Front I/O	USB	1 x USB Type-C3.2 Gen2, 2 x USB3.2 Gen2
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	LED	1 x HDD_LED, 1 x PWR_LED
	Button	1 x Power on

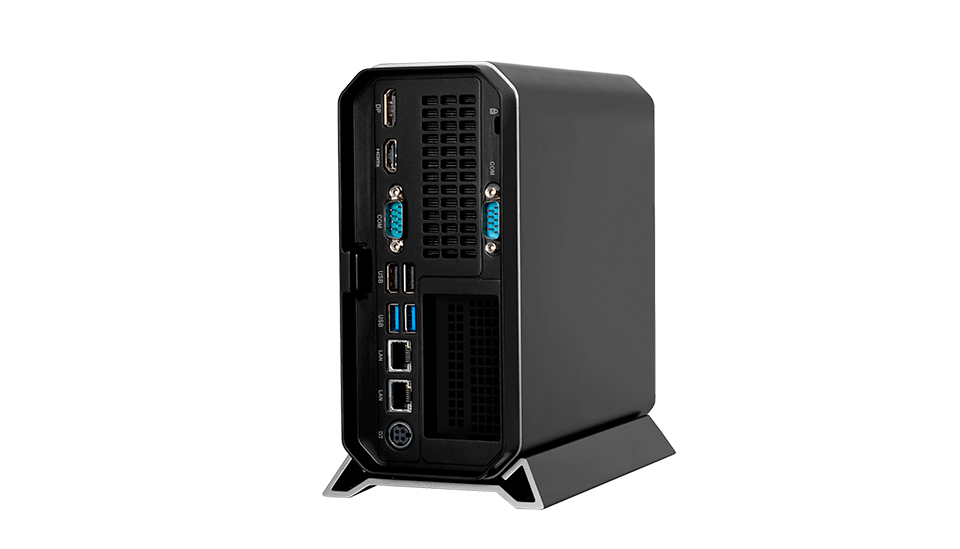

Rear I/O	Display Interface	1 x DP1.4 (Max. 7680 x 4320@60Hz, iGPU) 1 x HDMI2.0 (Max. 4096 x 2304@60Hz, iGPU)
	Serial port	1 x RS232, 1 x RS232/422/485
	USB	2 x USB3.2 Gen1, 2 x USB2.0
	Ethernet	1 x 2.5GbE RJ45, 1 x 1 GbE RJ45
	Antenna	2 x Internal Wi-Fi Antenna
System	Network Controller	1 x Realtek RTL 8111H Gigabit Ethernet 1 x Intel Ethernet Controller I226-V
	Wi-Fi/BT	1 x E-Key (2230) for Wi-Fi/BT, Support Wi-Fi 6 /6E (CNVi)
	TPM	Optional: TPM2.0
	Power Requirement	DC-IN, 19 V/12.1 A
	Dimensions	212 mm x 190 mm x 86 mm (8.87” x 7.48” x 3.38”)
	Construction	Gray Aluminum Case, Black/Blue Plastic Panel
	Operating System	Windows 11 (64bit)
	Operating Temperature	0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
	Humidity	95% @ 40°C (non-condensing)
	Certifications	CE, FCC Class B, UKCA
