Giada IB3-761: A Cost-Effective AI Motherboard for Smart Security Applications

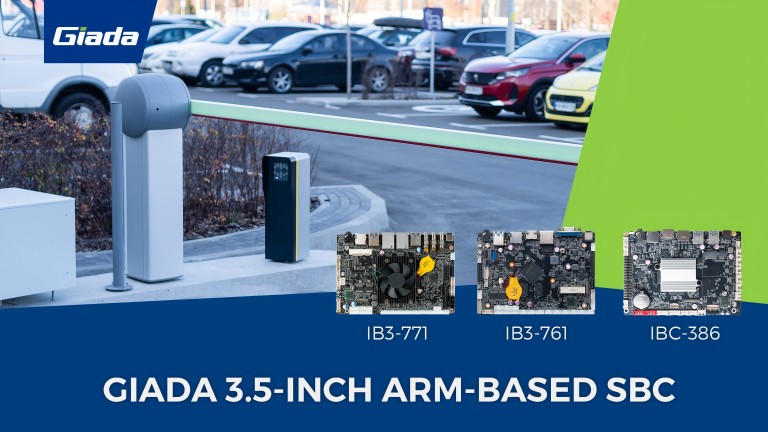

Giada IB3-761 compact motherboard for AI edge security and Pro AV

As AI technology continues to accelerate the development of smart security systems, many edge devices such as surveillance cameras and inspection robots require AI capabilities for tasks like human detection and abnormal behavior analysis. However, developers often face a dilemma: high-performance AI platforms provide more computing power than needed, leading to higher costs and power consumption, while ordinary motherboards lack the capability to handle even basic AI tasks. The Giada IB3-761 motherboard addresses this challenge by offering the right balance of AI computing power, efficiency, and connectivity.

Rockchip RK3568 Processor with 1 TOPS NPU

Built on the Rockchip RK3568 quad-core 64-bit processor, the IB3-761 integrates an NPU with 1 TOPS of AI computing power, making it ideal for lightweight edge AI workloads. This level of computing performance is precisely targeted for tasks commonly required in smart security applications, such as image recognition, abnormal behavior detection, voice command processing, and local data filtering. By delivering the necessary AI capability without excessive overhead, the IB3-761 helps reduce costs while maintaining efficient performance.

1 TOPS NPU

Optimized for lightweight AI inference at the edge.

Quad-core Cortex-A55

Efficient processing for embedded security applications.

Targeted AI Workloads

Image recognition, behavior detection, voice processing, data filtering.

3.5-inch Form Factor

The motherboard also benefits from the RK3568’s 22nm process technology and Cortex-A55 architecture, which ensures low power consumption. Its compact 3.5-inch form factor makes it easy to integrate into edge devices such as surveillance systems, smart access control terminals, and intercom systems, even in installations with limited space. The low power design also eliminates the need for additional cooling modules, further simplifying system deployment.

Compact Design

3.5-inch form factor for space-constrained installations.

Low Power Consumption

22nm process and efficient architecture reduce power needs.

Passive Cooling

Eliminates the need for active cooling modules.

Rich I/O connectivity

Another key strength of the IB3-761 is its rich I/O connectivity, enabling seamless integration with a wide range of sensors and devices. The board features a 4K HDMI interface, along with LVDS and eDP interfaces that support multi-display configurations. This allows users to display real-time monitoring footage on one screen while analyzing data or reviewing recordings on another.

For connectivity, the motherboard includes Gigabit Ethernet, Bluetooth, and dual-band Wi-Fi 5 (2.4GHz/5GHz). It also offers two USB 3.0 ports, nine USB 2.0 headers, and six RS232/RS485/TTL interfaces, making it easy to connect cameras, storage devices, access control systems, alarms, and environmental sensors.

Display Interfaces

4K HDMI, LVDS, eDP for multi-display setups.

Network & Wireless

Gigabit Ethernet, dual-band Wi-Fi 5, Bluetooth.

Expansive I/O

Multiple USB, serial interfaces for sensors and peripherals.

IB3-761 rich I/O connectivity ports and interfaces

In real-world deployments, such as community security projects, the IB3-761 works with high-definition cameras and alarm systems to perform local human detection and abnormal behavior analysis. When a potential risk is identified, the system can trigger alerts instantly without relying on cloud processing. This proactive approach helps transform traditional passive monitoring into intelligent, real-time security protection.

With its balanced AI performance, low power consumption, and flexible connectivity, the Giada IB3-761 offers a practical and cost-effective solution for modern edge AI security systems.
