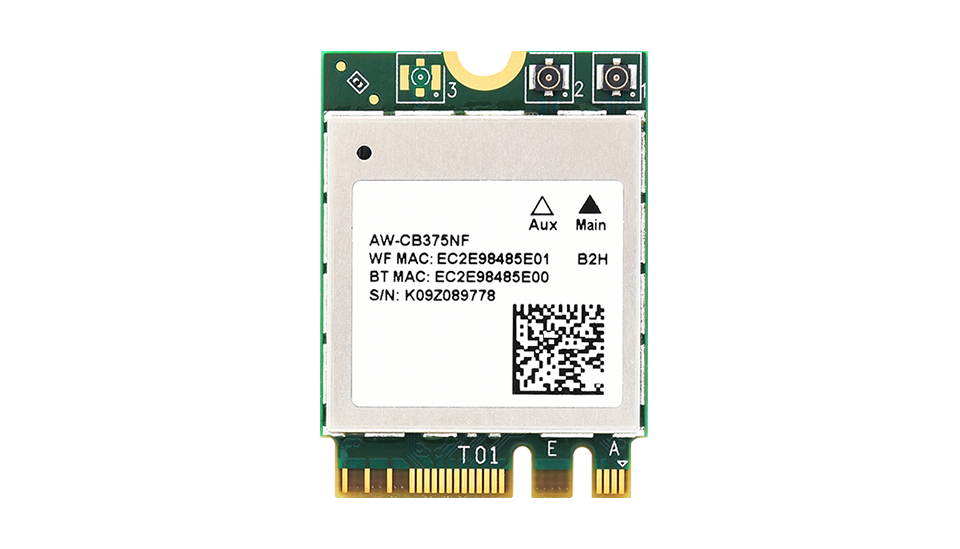

| Product Description | IEEE 802.11a/b/g/n/ac Wireless LAN 2T2R and Bluetooth 5.0 Combo Module (M.2 2230) |
| Major Chipset | RTL8822CE-CG |
| Host Interface | Wi-Fi+BT (PCIe + USB) |
| Dimension | 22mm x 30mm x 2.25mm (Tolerance remarked in mechanical drawing) |
| Form factor | M.2 2230 A-E Key |
| Antenna | I-PEX MHF4 Connector Receptacle (20449) ANT1(Main)：Wi-Fi/Bluetooth, TX/RX
ANT2(Aux)：Wi-Fi, TX/RX
|
| Weight | 2.5g |
| WLAN Standard | IEEE 802.11 a/b/g/n/ac2T2R |
| WLAN VID/PID | 10EC/C822 |
| WLAN SVID/SPID | 1A3B/3751 |
| Frequency Rage | 2.4 GHz: 2.412 ~ 2.484 GHz 5 GHz: 5.18~5.825GHz
|
| Voltage | Power supply for host:3.3V |
| Operating Temperature | 0℃~70℃ |
| Operating Humidity | less than 85%R.H. |
| Storage Temperature | -30℃~85℃ |
| Storage Humidity | less than 60%R.H. |
